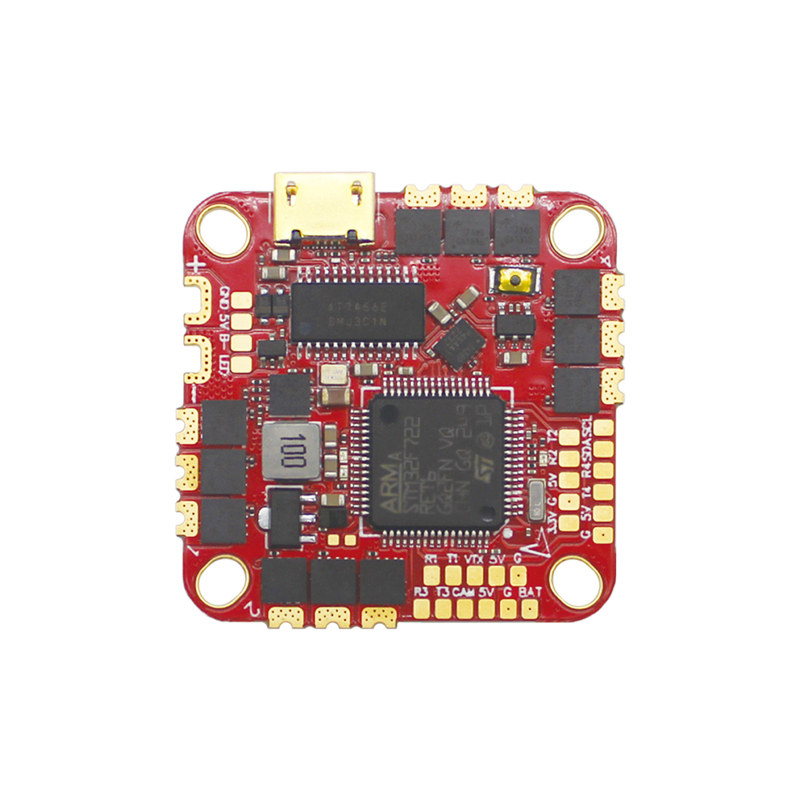

HAKRC F7226 AIO

Product Features:

1. Features high-end 8-layer 2oz heavy copper PCB with advanced resin-filled via technology and dual-pad design, delivering superior current-carrying capacity and excellent heat dissipation

2. Utilizes imported 40V high-current MOSFETs, ensuring extended lifespan and robust load capability

3. Industrial-grade LDO for reliable high-temperature operation

4. High-quality Japanese Murata capacitors for superior filtering performance

Dimensions: 32×32mm (25.5×26.5mm mounting holes)
Package Dimensions: 64×64×35mm
Net Weight: 9g
Package Weight: 52g

Flight Controller Parameters:

• CPU: STM32F722RET6

• IMU: ICM42688

• OSD: AT7456E

• Barometer: Integrated

• BEC: 5V/1.5A

• LED: External programmable LED

• Sensors: Built-in current sensor

• FC Firmware Version: HAKRCF722D

• Receiver Support: CRSF/Frsky/Futaba/Flysky/TBS Crossfire/DSMX/DSM2

ESC Parameters:

• Firmware Version: BLHELI_S (G-H-30)

• Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

• Input Voltage: 2S-6S LiPo

• Current Meter Scale: 210

• Continuous Current: 40A

• Peak Current: 45A
