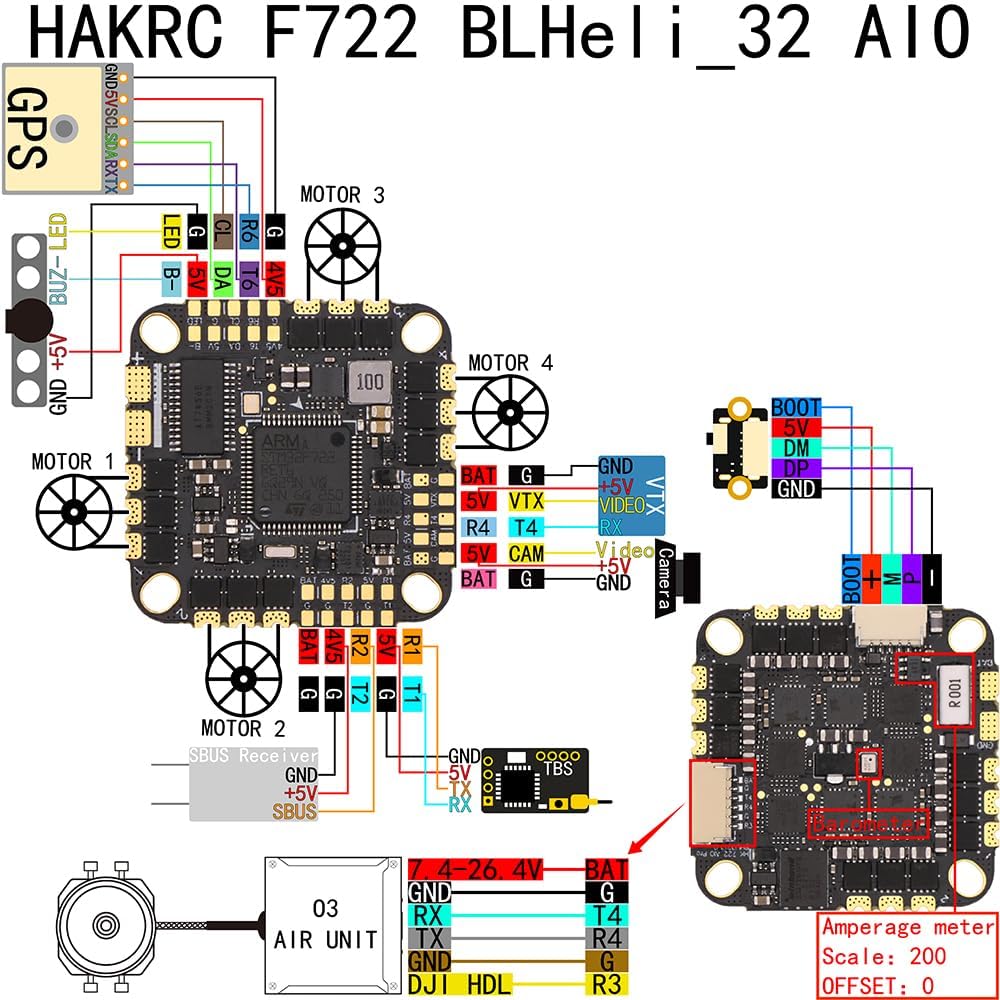

HAKRC F722 BLHeli_32 AIO

Product Features:

1. Utilizes high-end 8-layer 2oz heavy copper PCB with advanced resin-filled via technology and dual-pad design, delivering superior current-carrying capacity and excellent heat dissipation.

2. Equipped with imported 40V high-current MOSFETs, ensuring extended lifespan and robust load capability.

3. Industrial-grade LDO for reliable high-temperature operation.

4. High-quality Japanese Murata capacitors for superior filtering performance.

5. Supports ESC telemetry data overlay via FPV video transmission.

Dimensions: 33×33mm (25.5×26.5mm mounting holes)
Package Dimensions: 64×64×35mm
Net Weight: 8.5g
Package Weight: 54g

Flight Controller Parameters:

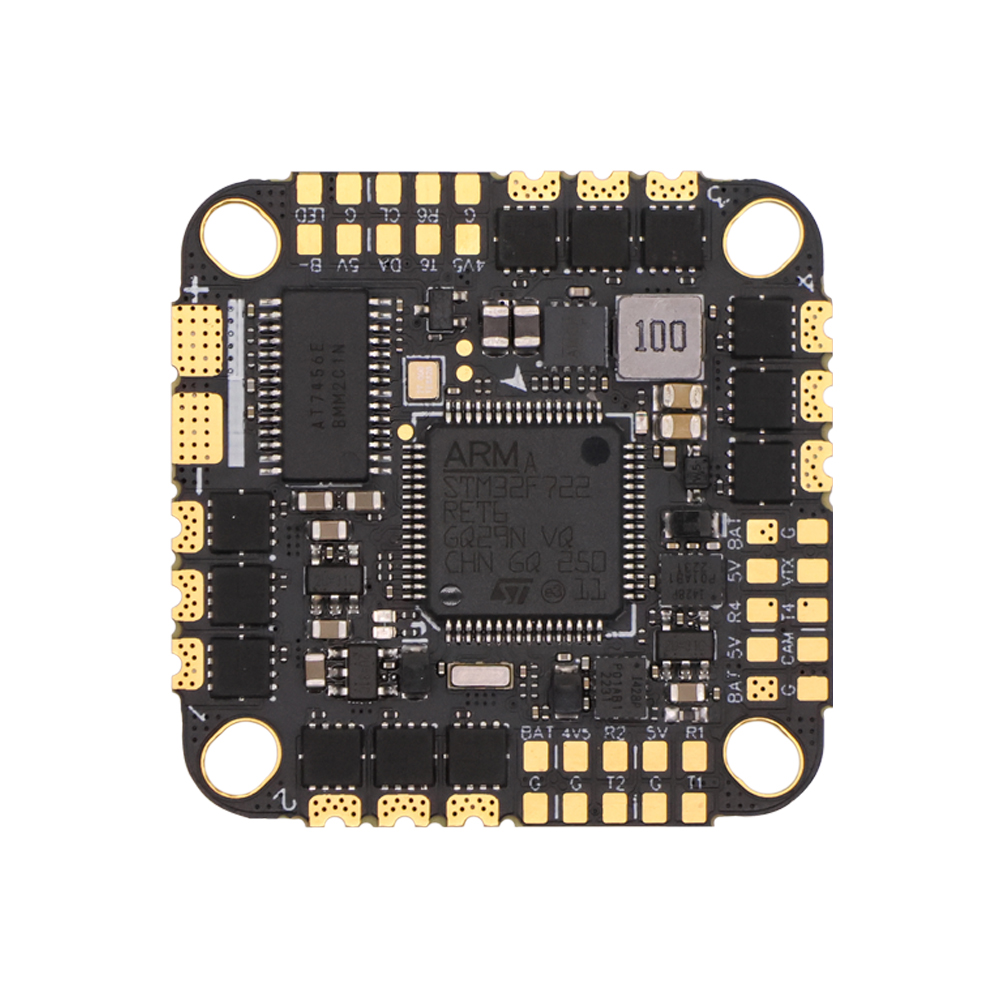

• CPU: STM32F722RET6

• IMU: Dual gyroscope (ICM-42688)

• OSD: AT7456E

• Barometer: Integrated

• BEC: 5V/2A

• Current Meter Scale: 200

• Blackbox: 16M

• LED: Supports external programmable LED strips

• Sensors: Built-in current sensor

• FC Firmware Version: HAKRCF722D

• Receiver Support: CRSF/Frsky/Futaba/Flysky/TBS Crossfire/DSMX/DSM2

ESC Parameters:

• Firmware Version: HAKRC_AT4G_Multi_32.9 Hex

• Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

• Input Voltage: 2S-6S LiPo

• Current Meter Scale: 200

• Continuous Current: 45A

• Peak Current: 55A
