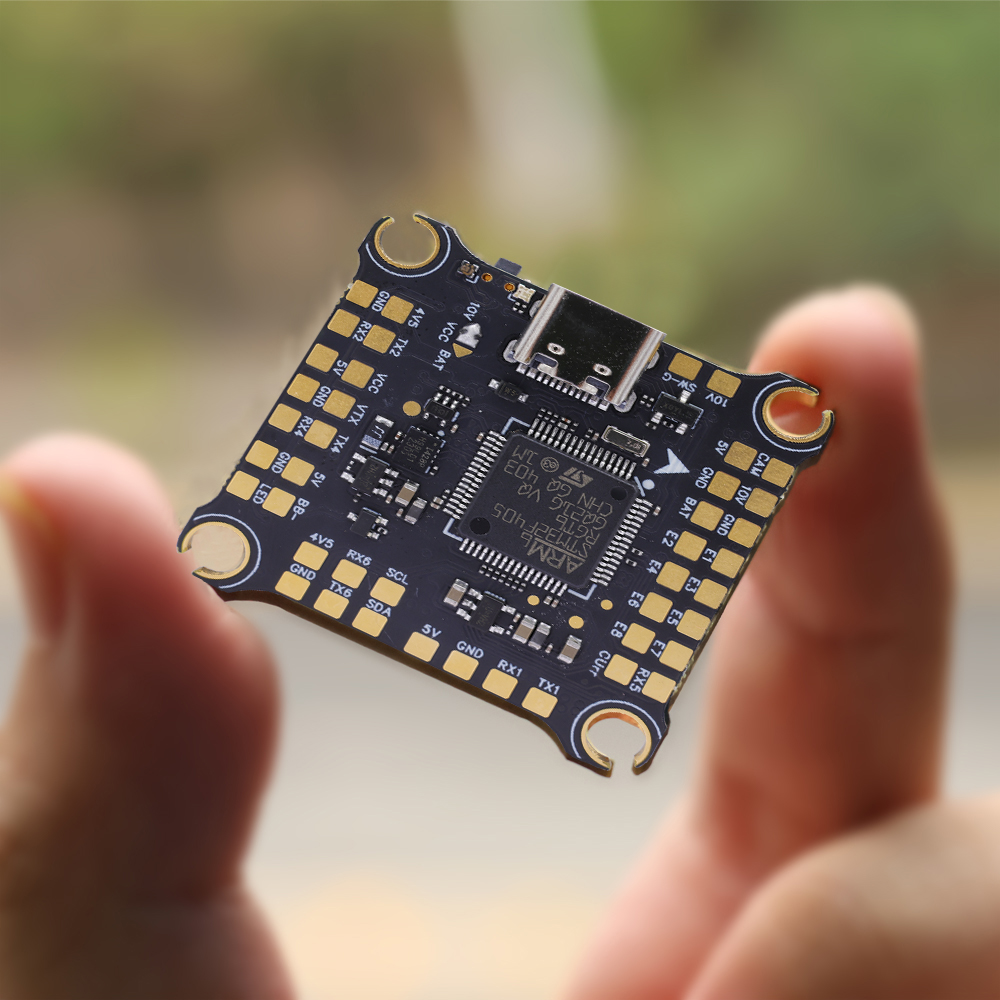

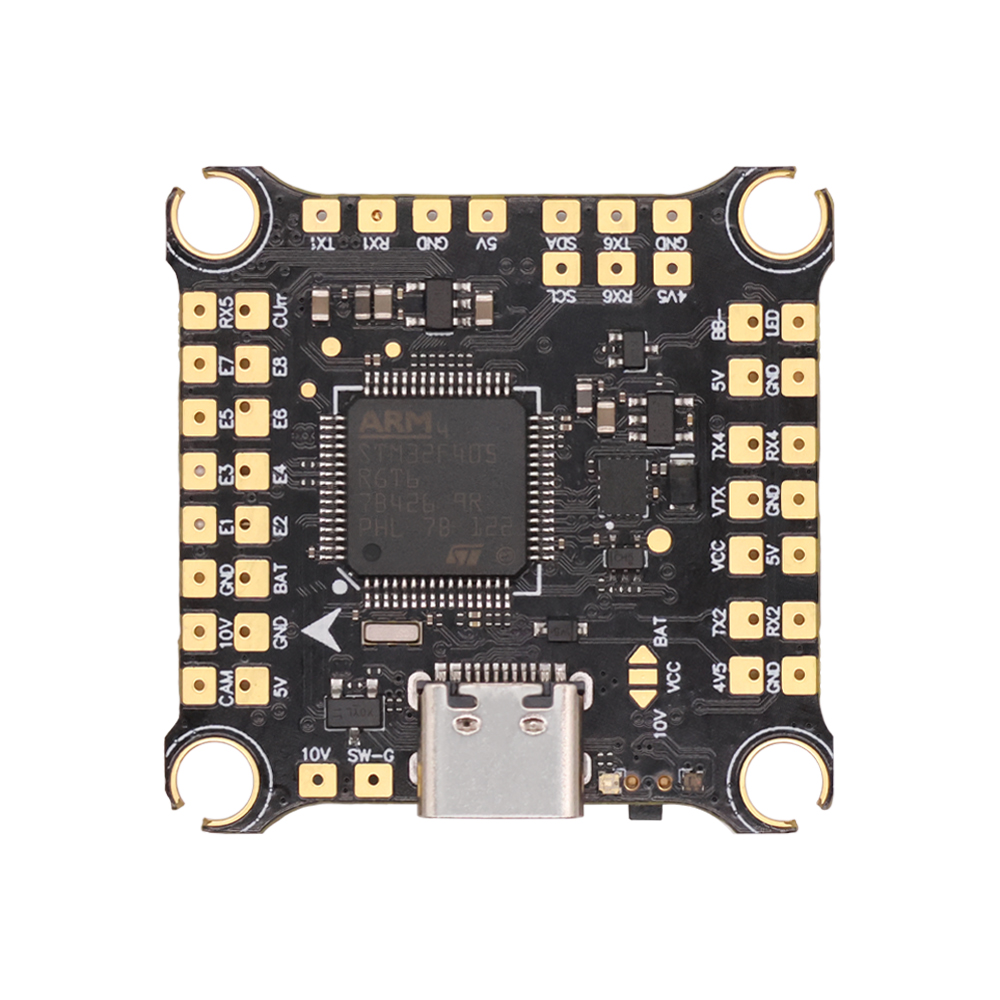

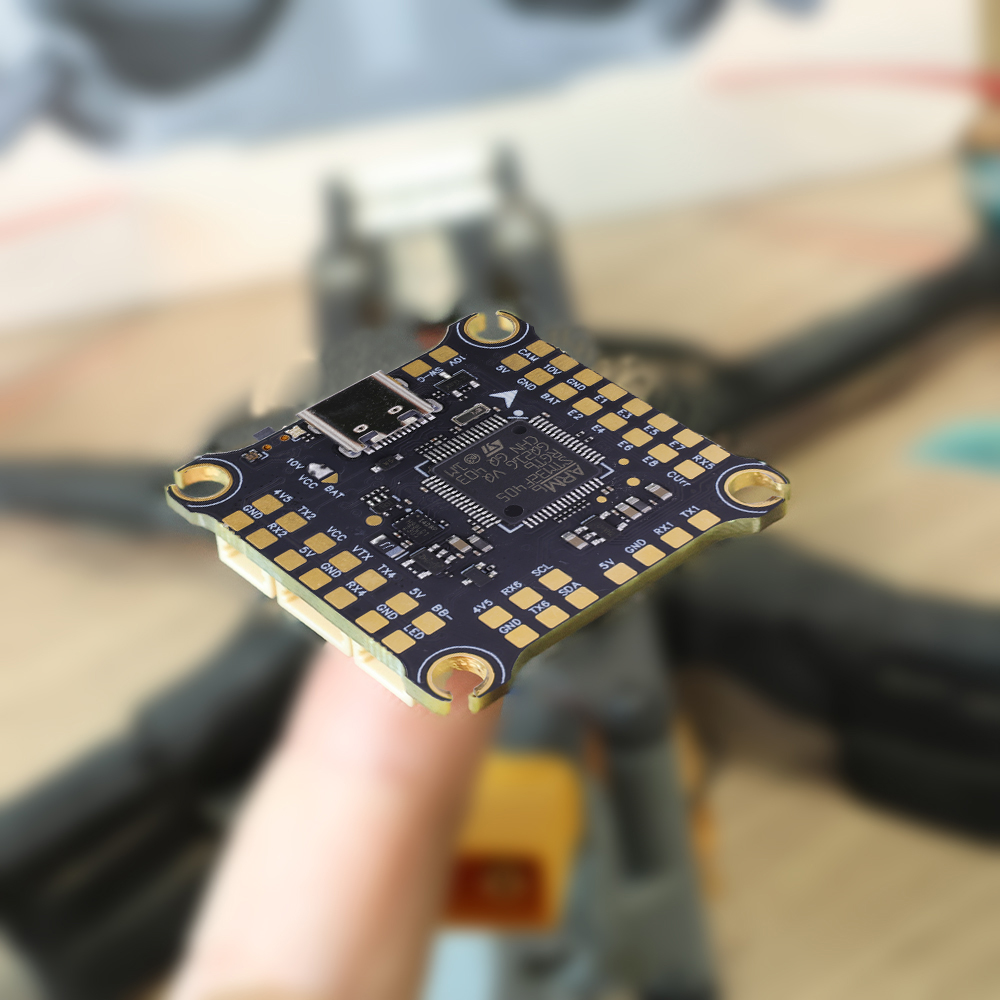

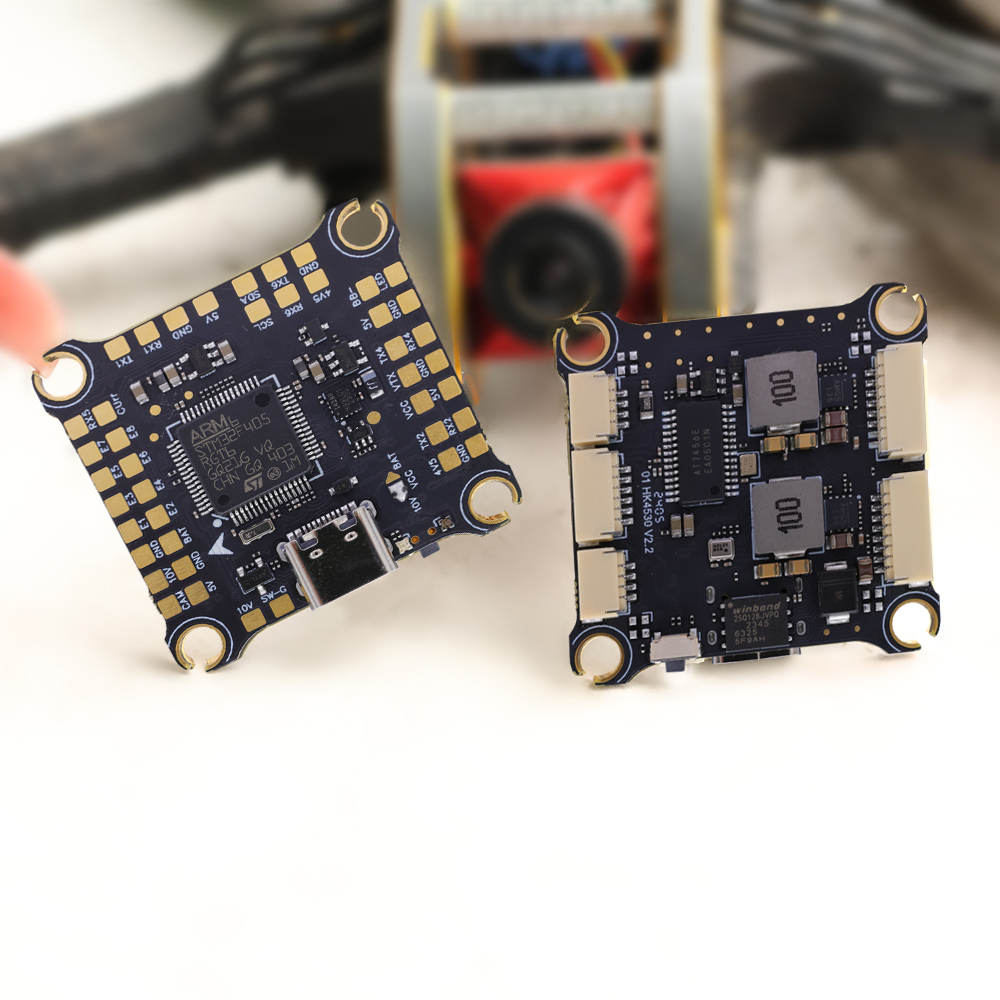

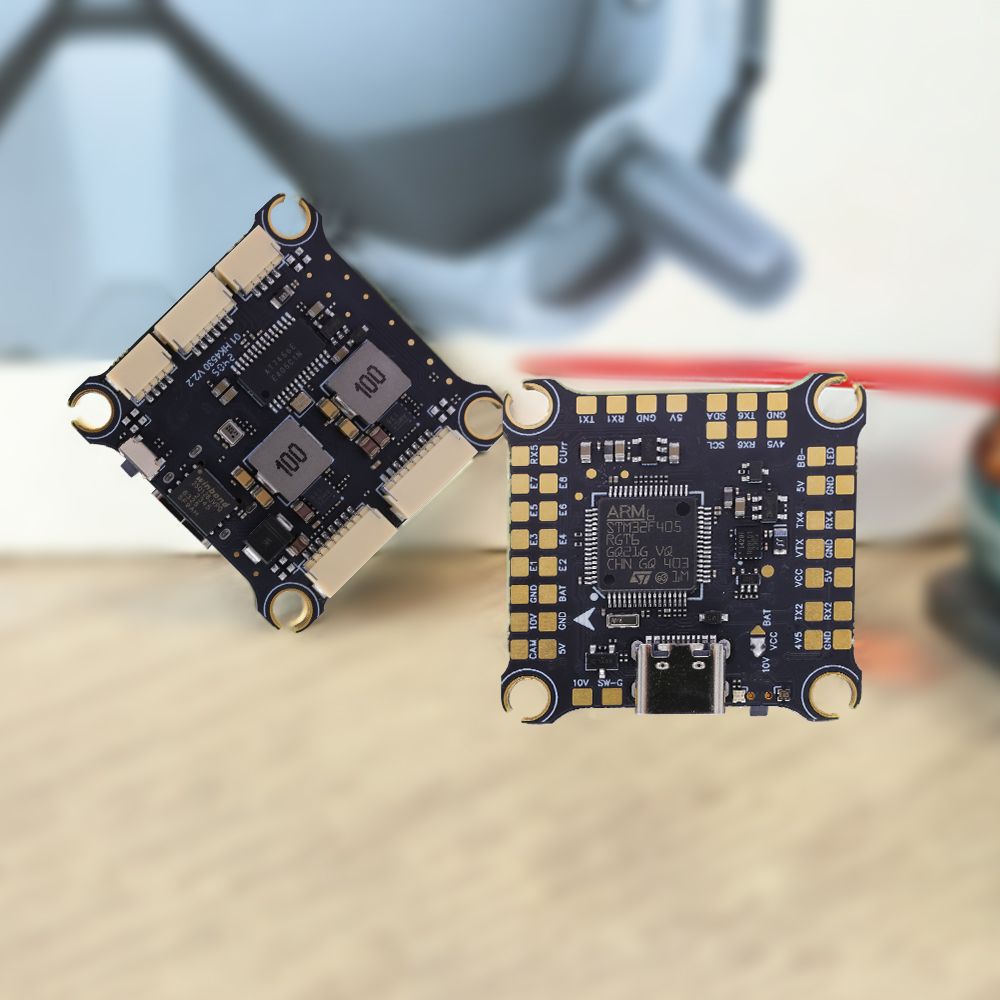

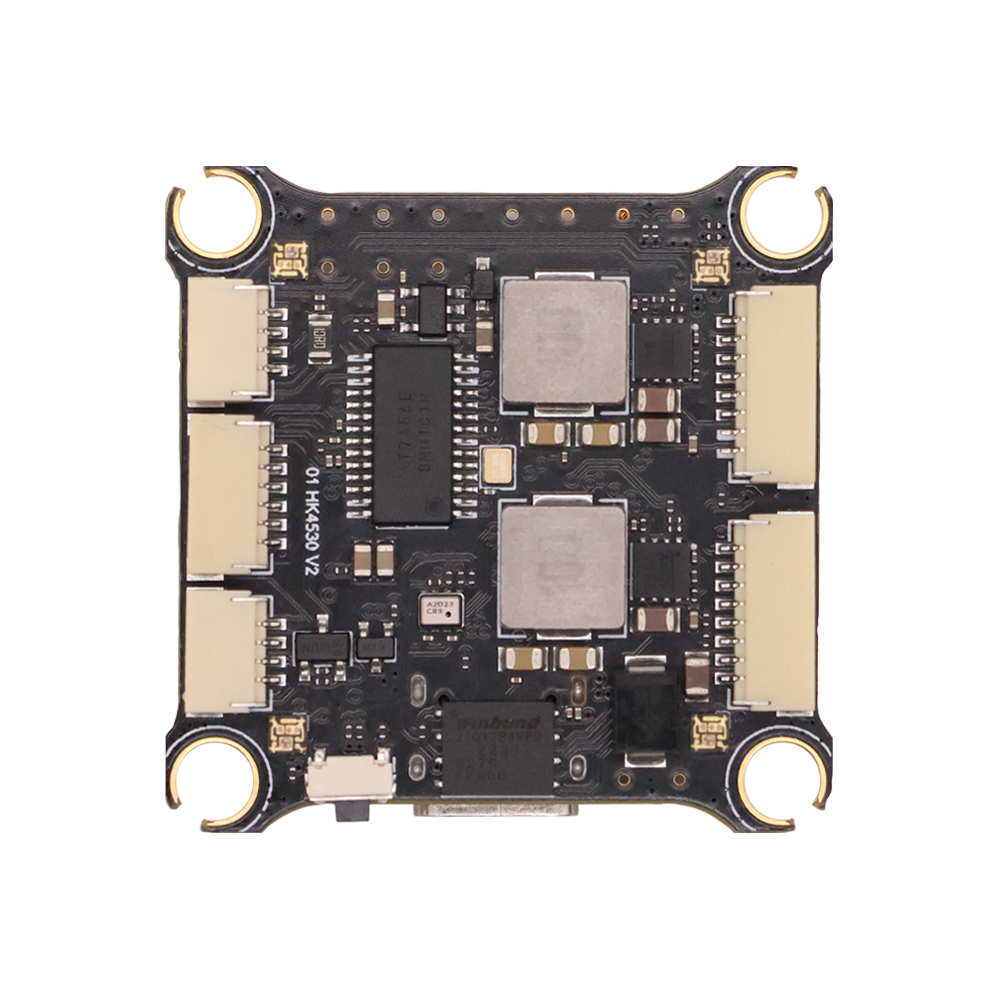

HAKRC F4530 V3 Flight Controller

Product Features:

1. Features high-end 6-layer 1oz heavy copper PCB with resin-filled via technology for enhanced anti-interference capability

2. Industrial-grade LDO ensures reliable performance under high temperatures

3. Plug-and-play connectors facilitate easy installation without soldering

4. Provides 10V power output for external LED strips with remote control channel configuration

5. High-quality Japanese Murata capacitors deliver excellent filtering performance

Physical Specifications:

• Dimensions: 36×36mm (30.5×30.5mm mounting holes)

• Built-in 6-pin FPV system connector

• 8-channel motor control output

• RX2 port for SBUS connection

• Package Dimensions: 64×64×35mm

• Net Weight: 8.5g

• Package Weight: 40g

Flight Controller Parameters:

• Processor: STM32F405RGT6

• IMU: ICM42688

• OSD: AT7456E

• Barometer: Integrated

• Blackbox: 16MB

• Input Voltage: 2-6S LiPo

• Power System:

  • 5V/3A BEC

  • 10V/2.5A BEC

• Sensors: Built-in current sensor

• Firmware: HAKRCF405V2

• Receiver Compatibility: Frsky/Futaba/Flysky/TBS Crossfire/DSMX/DSM2

• Supported Firmware: Betaflight, INAV, ArduPilot
