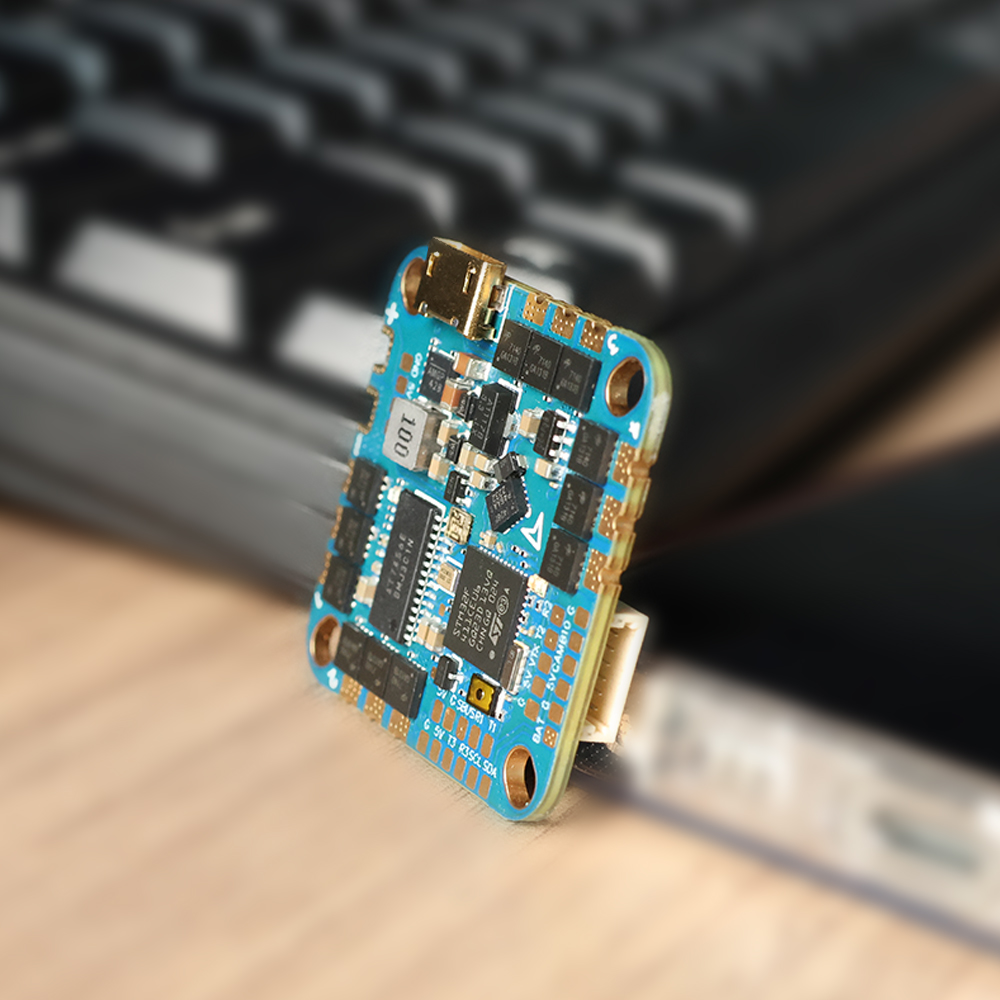

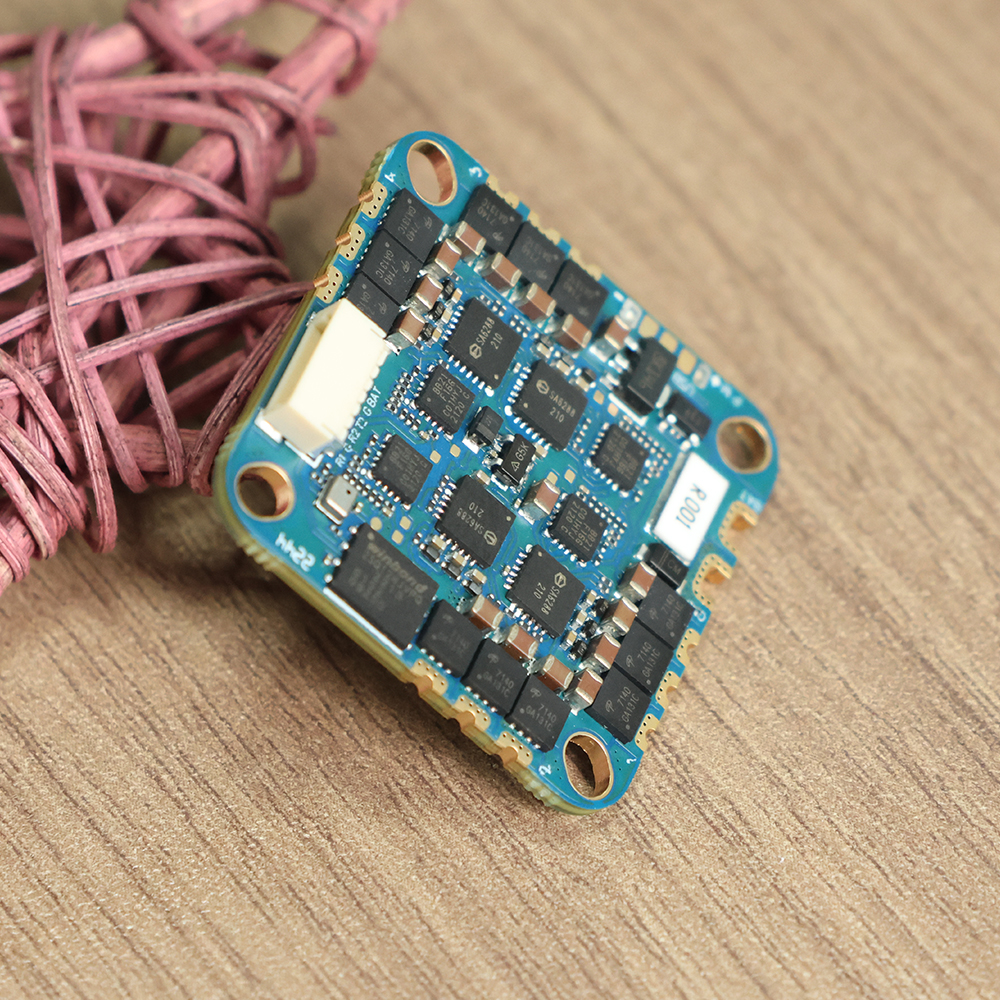

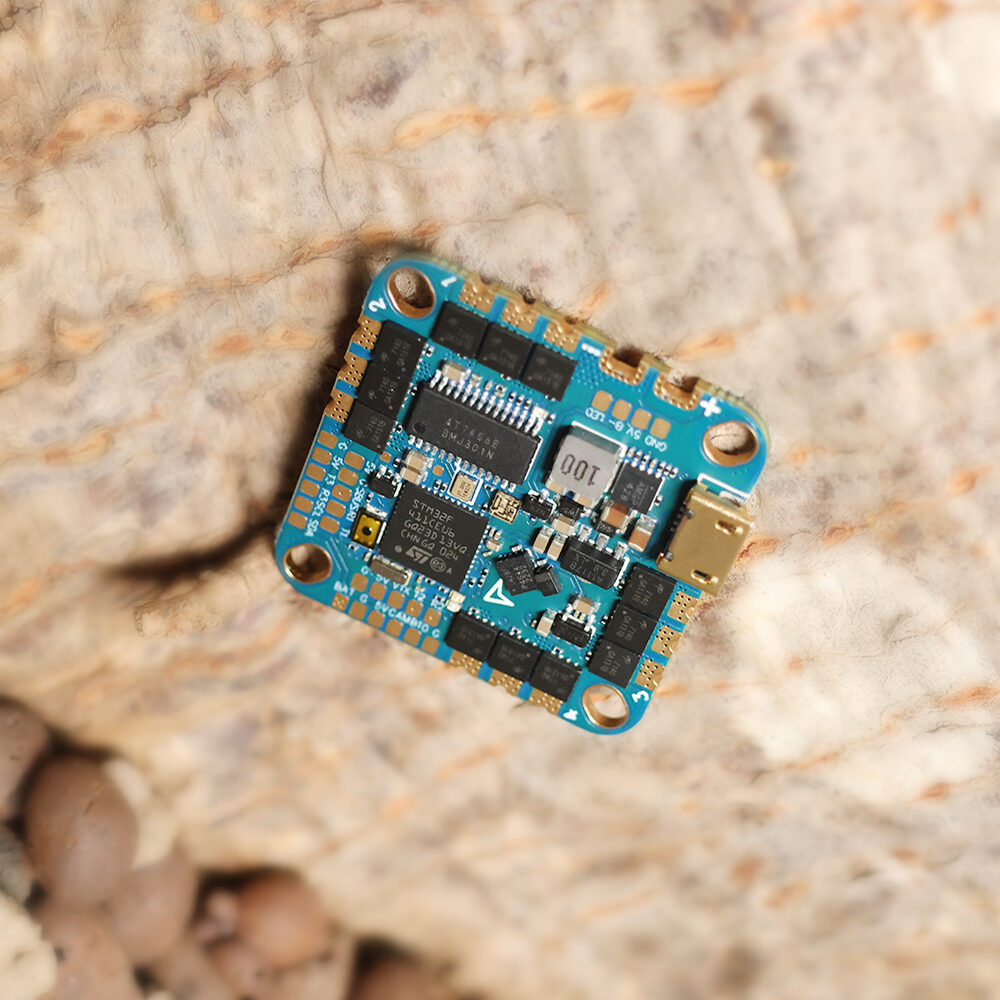

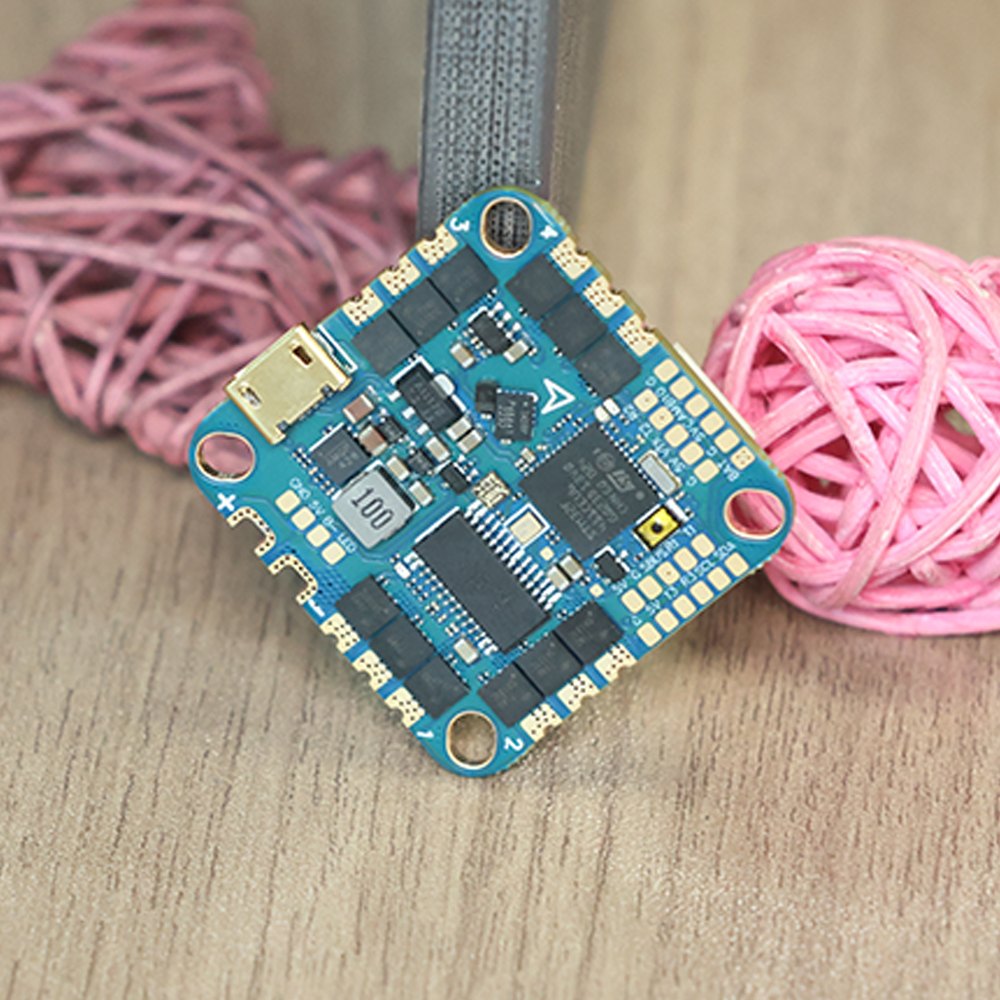

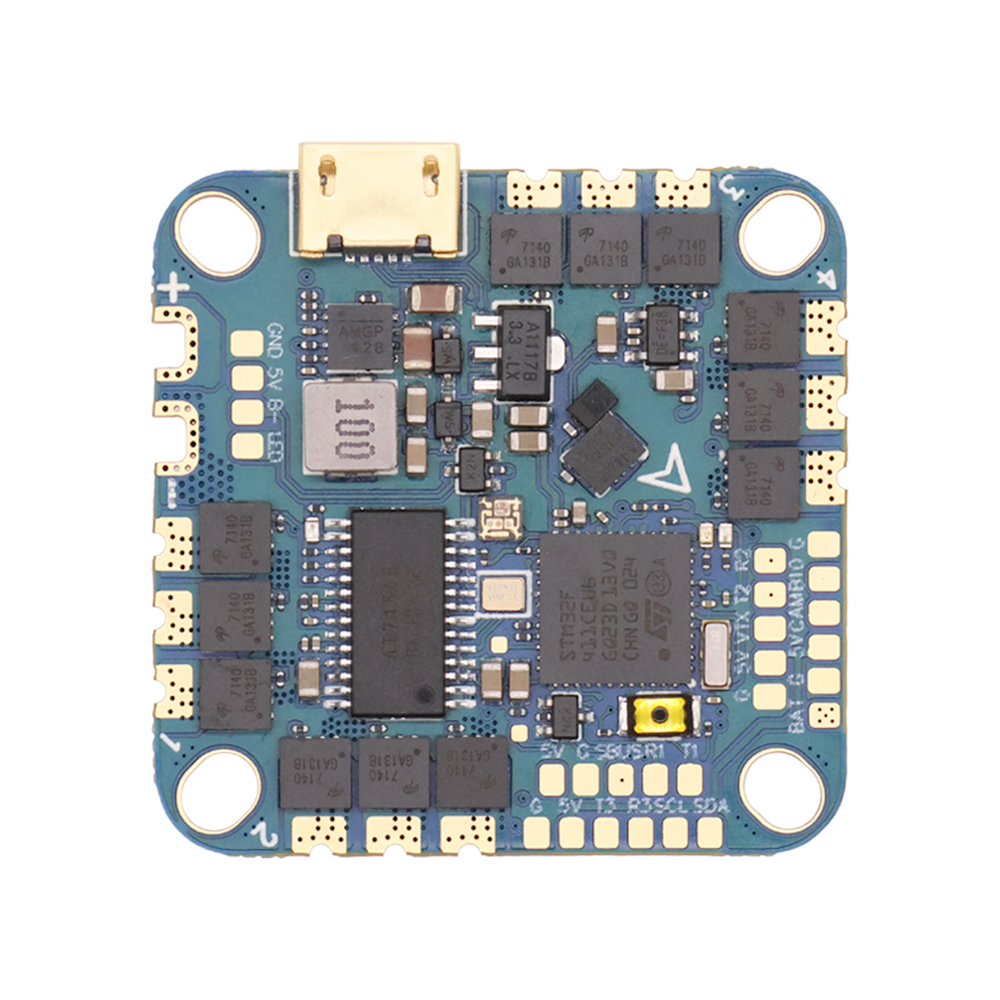

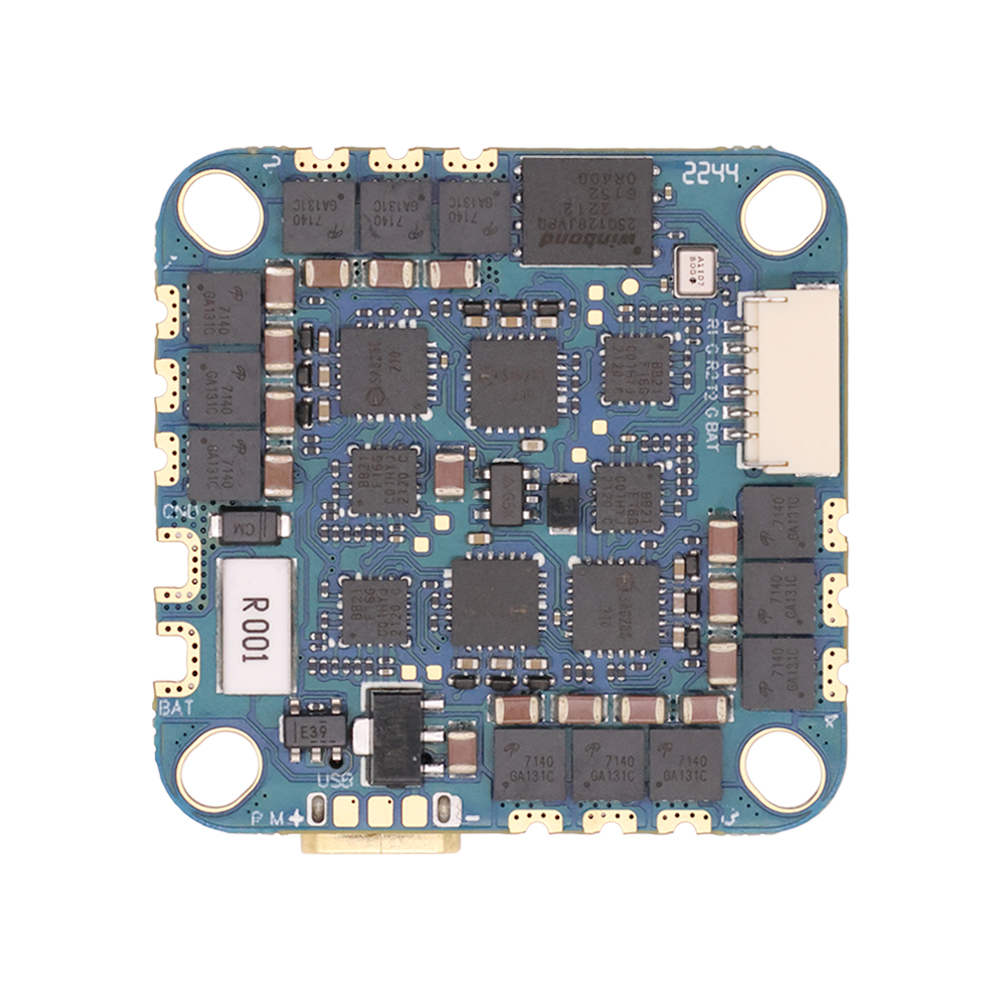

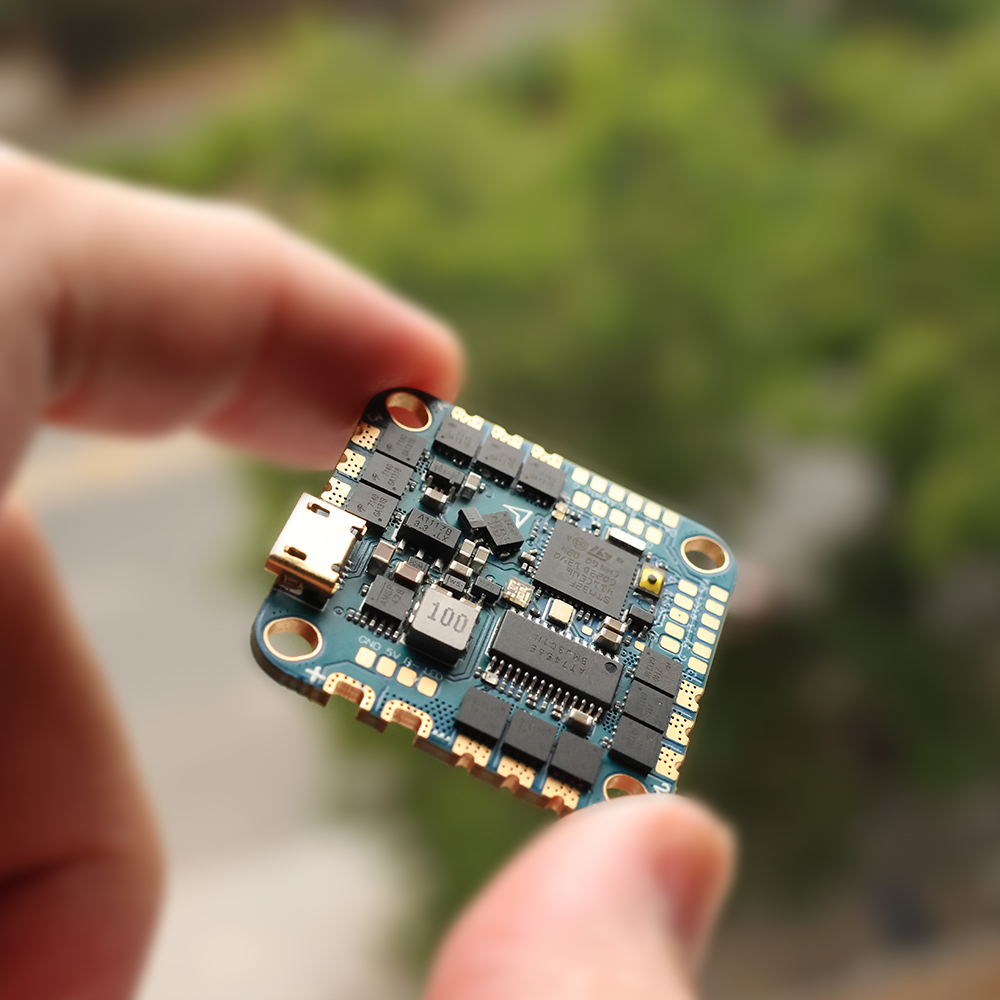

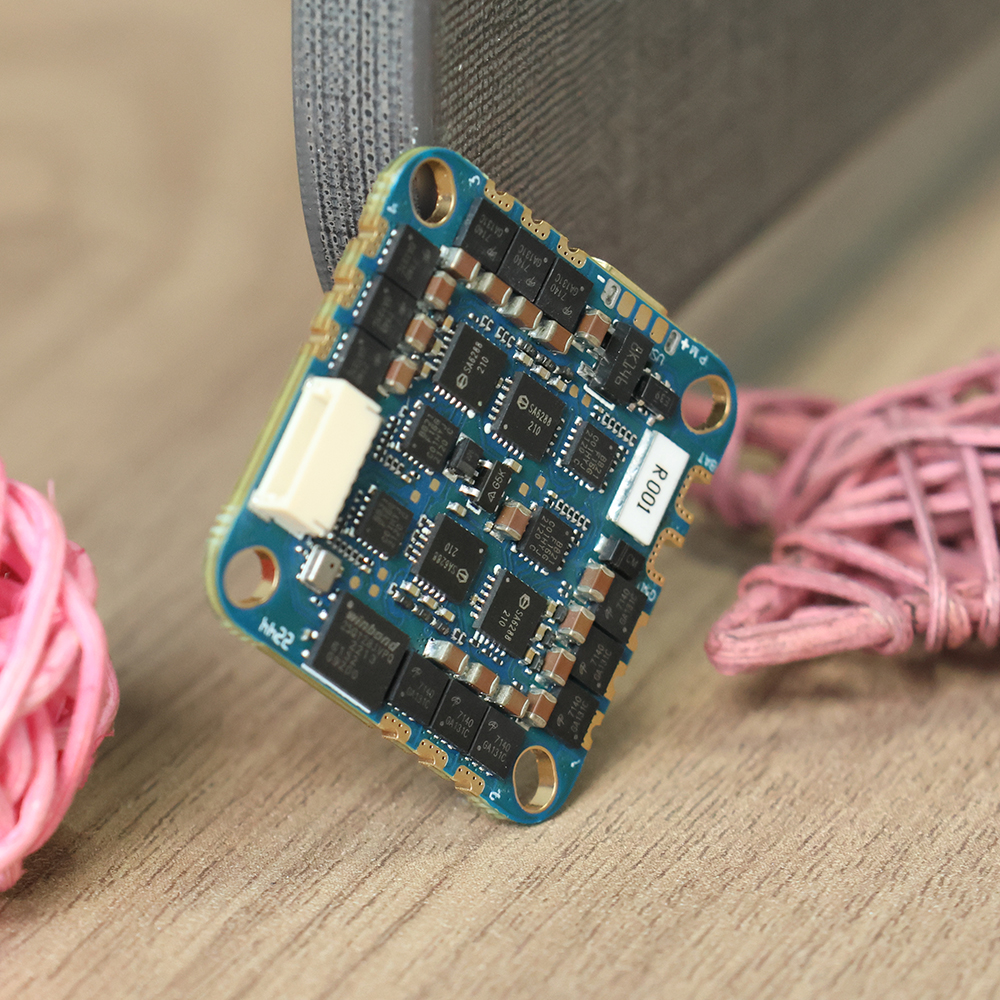

HAKRC F4126 40A AIO

Product Features:

1. Utilizes high-end 8-layer 2oz heavy copper PCB with advanced resin-filled via technology and dual-pad design, delivering superior current-carrying capacity and heat dissipation.

2. Equipped with imported 40V high-current MOSFETs, ensuring extended lifespan and robust load capability.

3. Industrial-grade LDO for reliable high-temperature operation.

4. High-quality Murata capacitors from Japan for excellent filtering performance.

Dimensions: 32×32mm (25.5×26.5mm mounting holes)

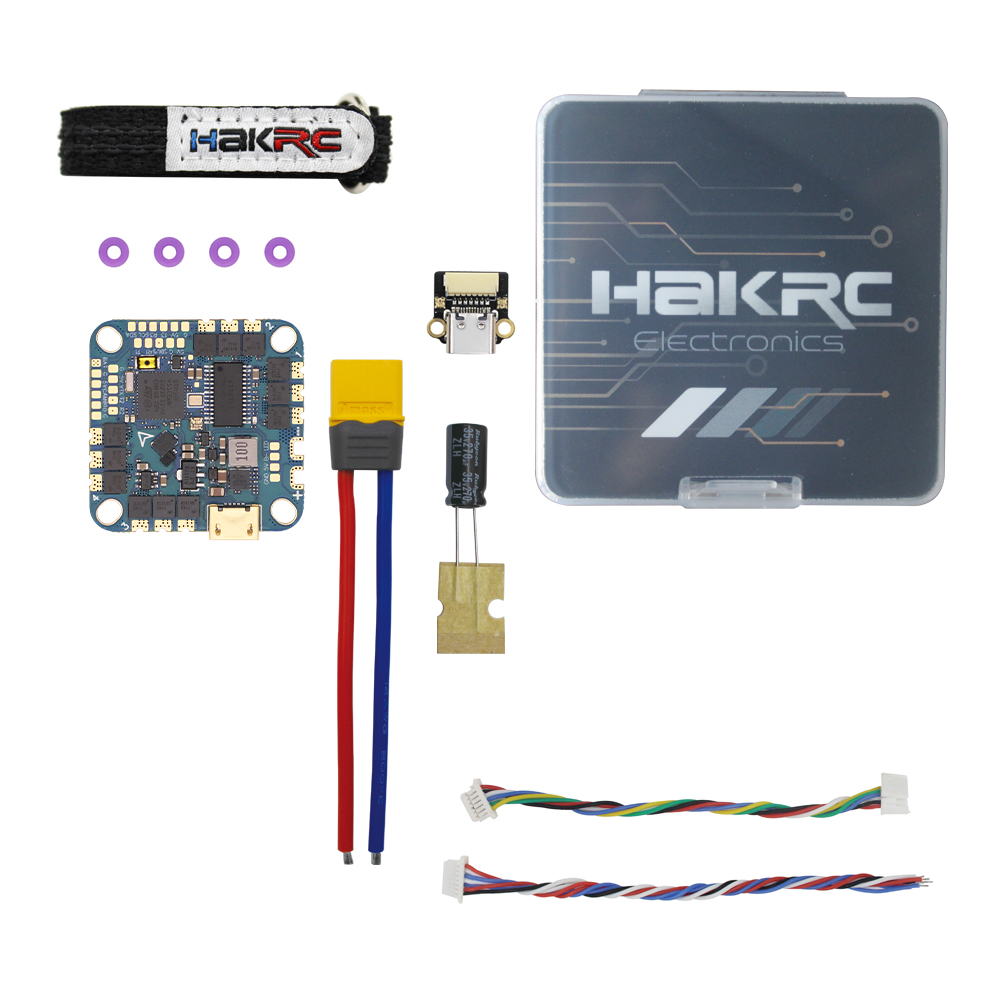

Package Dimensions: 64×64×35mm
Net Weight: 8.5g
Package Weight: 50g

Flight Controller Parameters:

• CPU: STM32F411CEU6

• IMU: ICM42688

• OSD: AT7456E

• Barometer: Integrated

• Blackbox: 16M

• BEC: 5V/1.5A

• LED: Built-in programmable LEDs

• Sensors: Integrated current sensor

• Firmware Version: HAKRCF411D

• Receiver Support: Frsky/Futaba/Flysky/TBS Crossfire/DSMX/DSM2

ESC Parameters:

• Firmware Version: BLHELI_S (G-H-30)

• Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

• Input Voltage: 2S-6S LiPo

• Current Meter Scale: 210

• Continuous Current: 40A

• Peak Current: 45A
