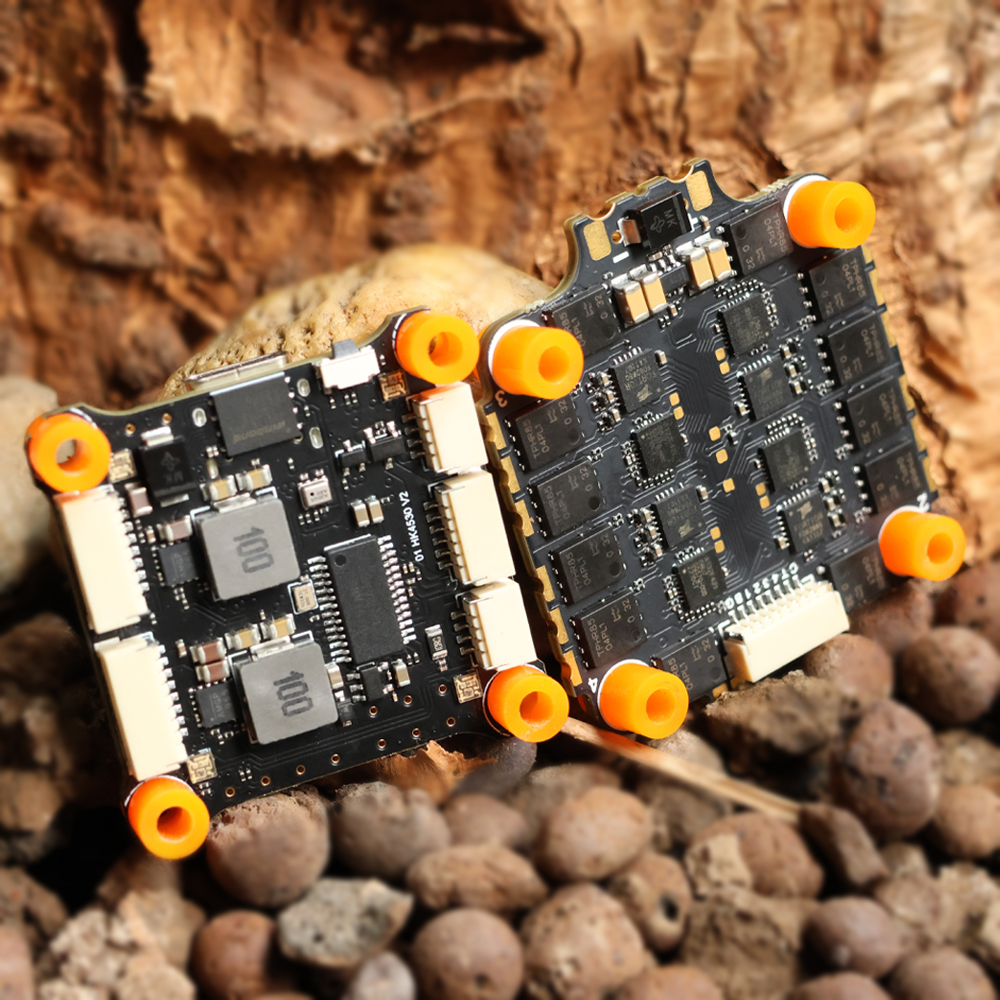

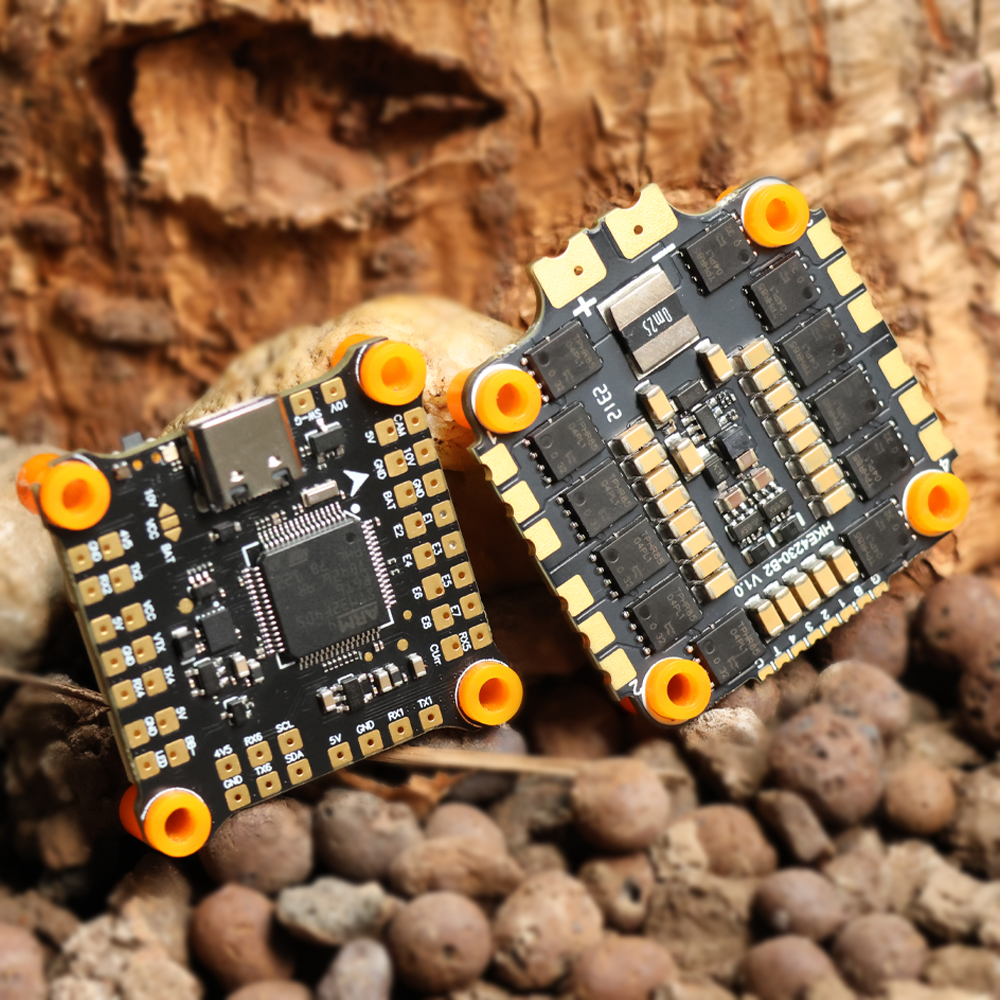

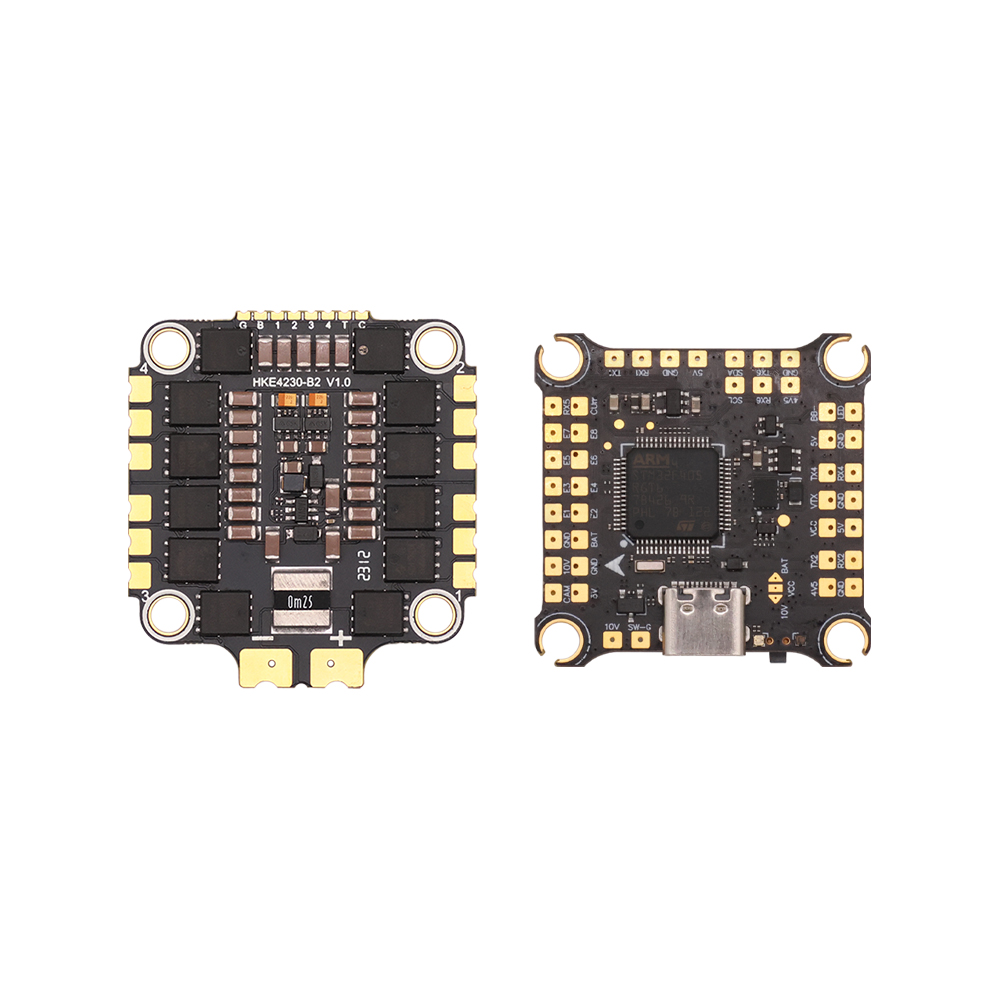

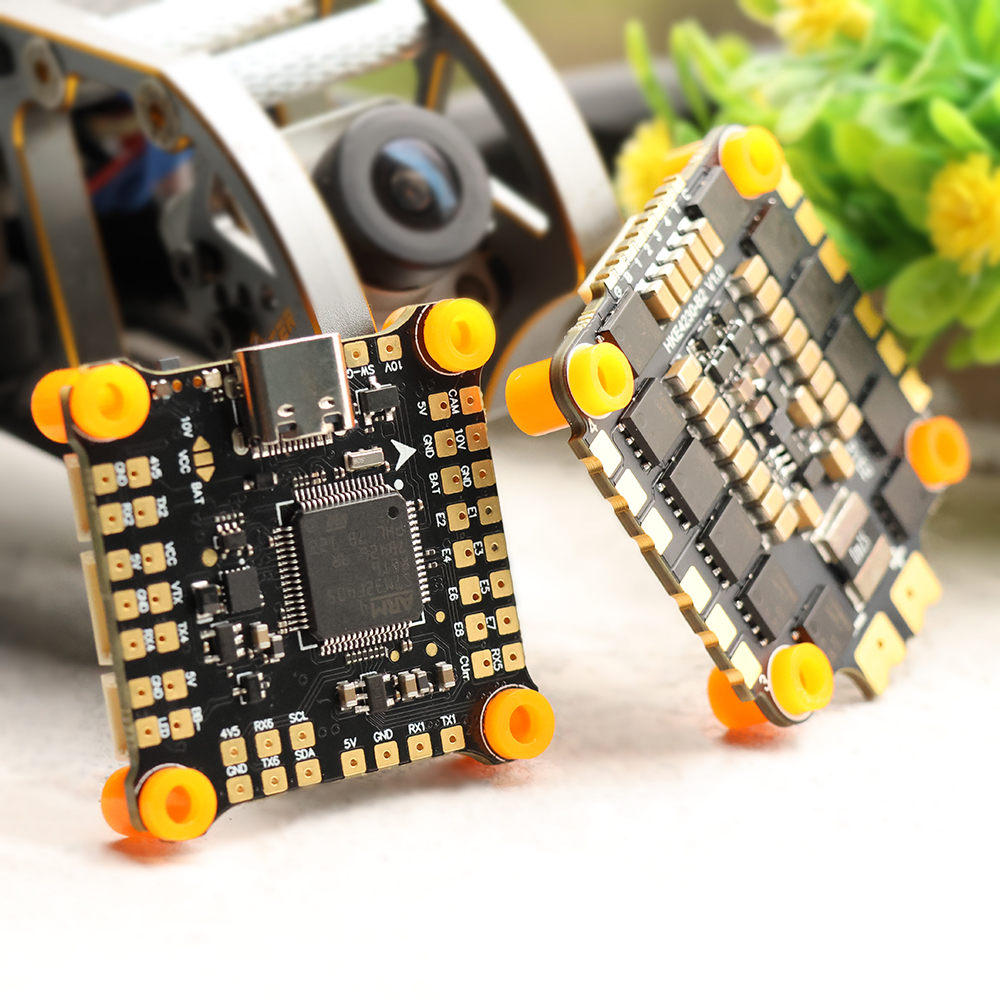

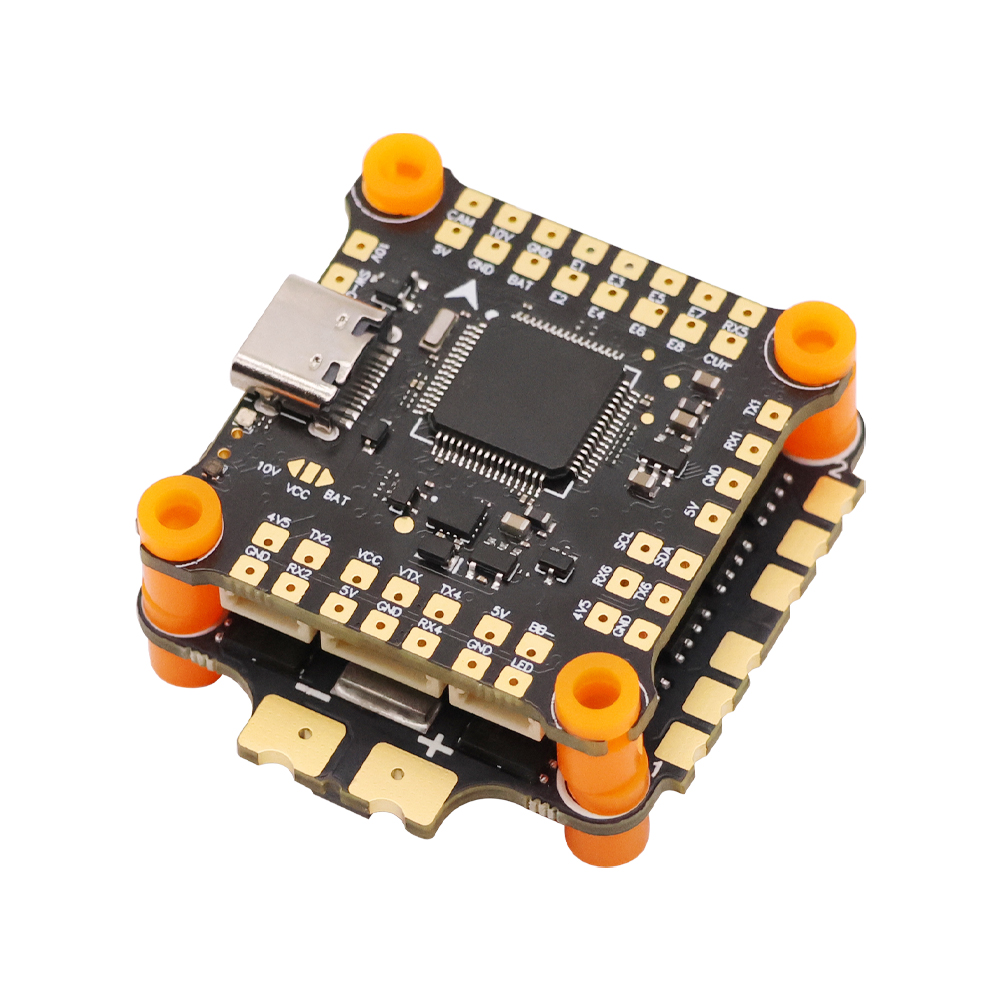

HAKRC 65A F4 V2 STACK

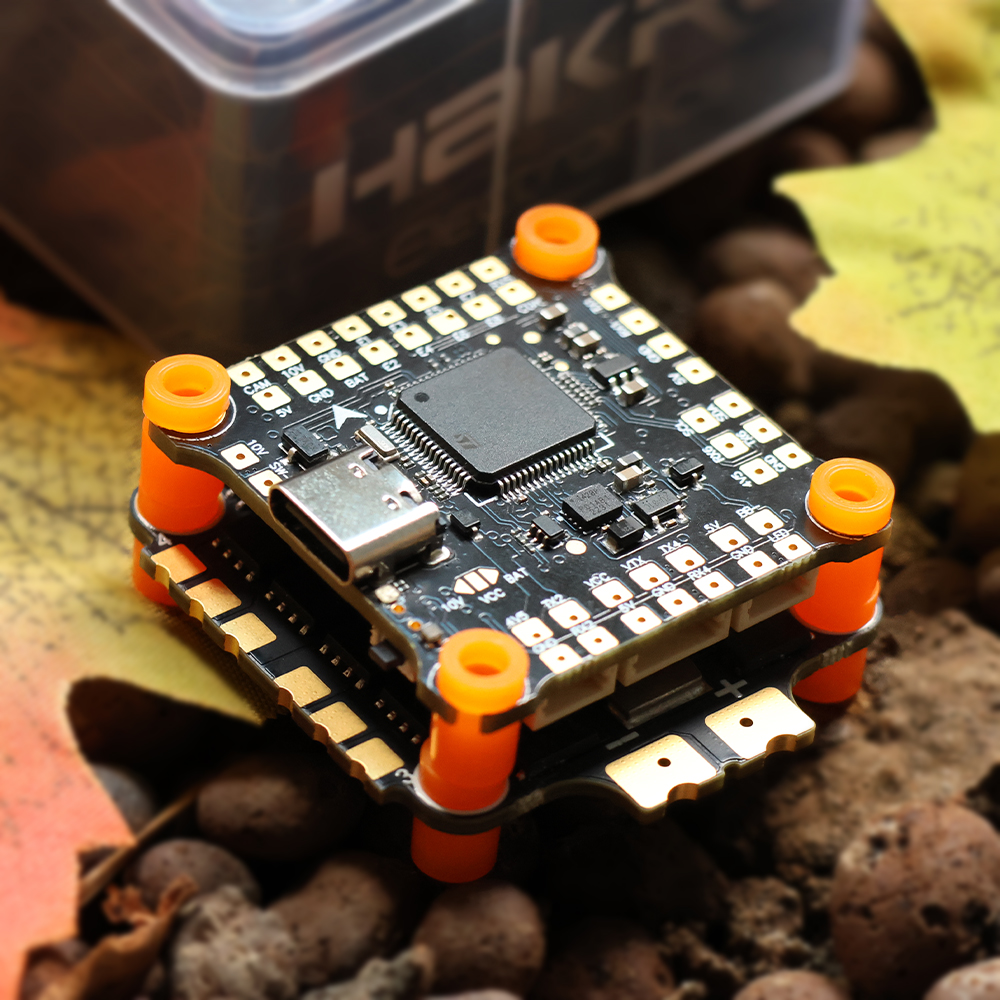

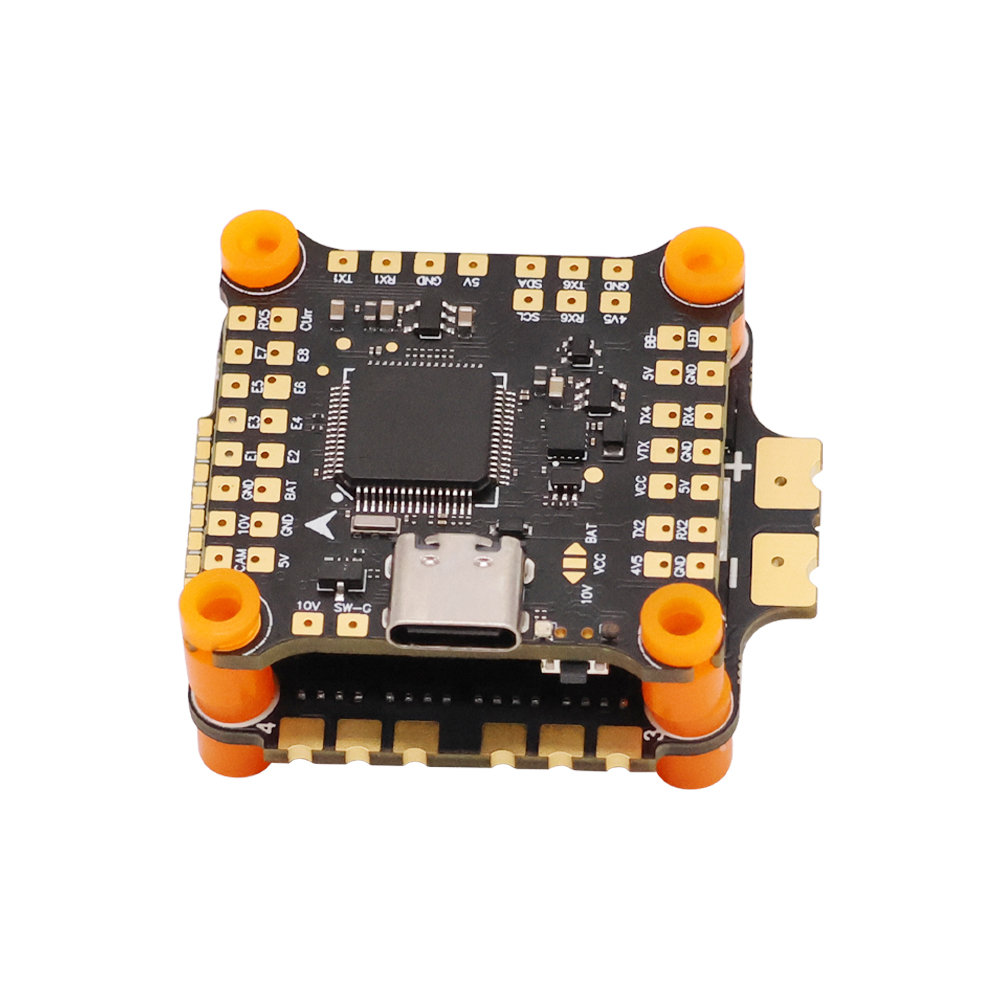

Flight Stack Specifications

• Net Weight: 23.5g

• Package Weight: 71.5g

• Package Dimensions: Φ64×64×35mm

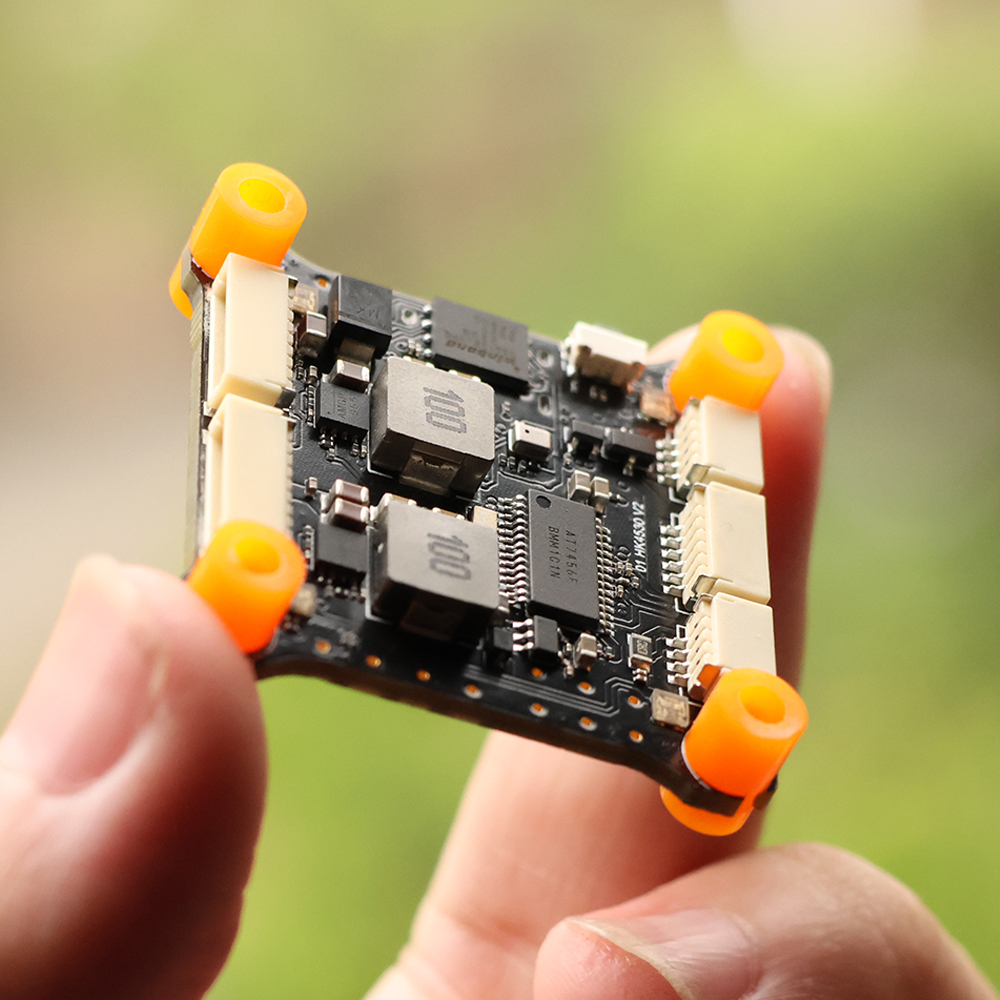

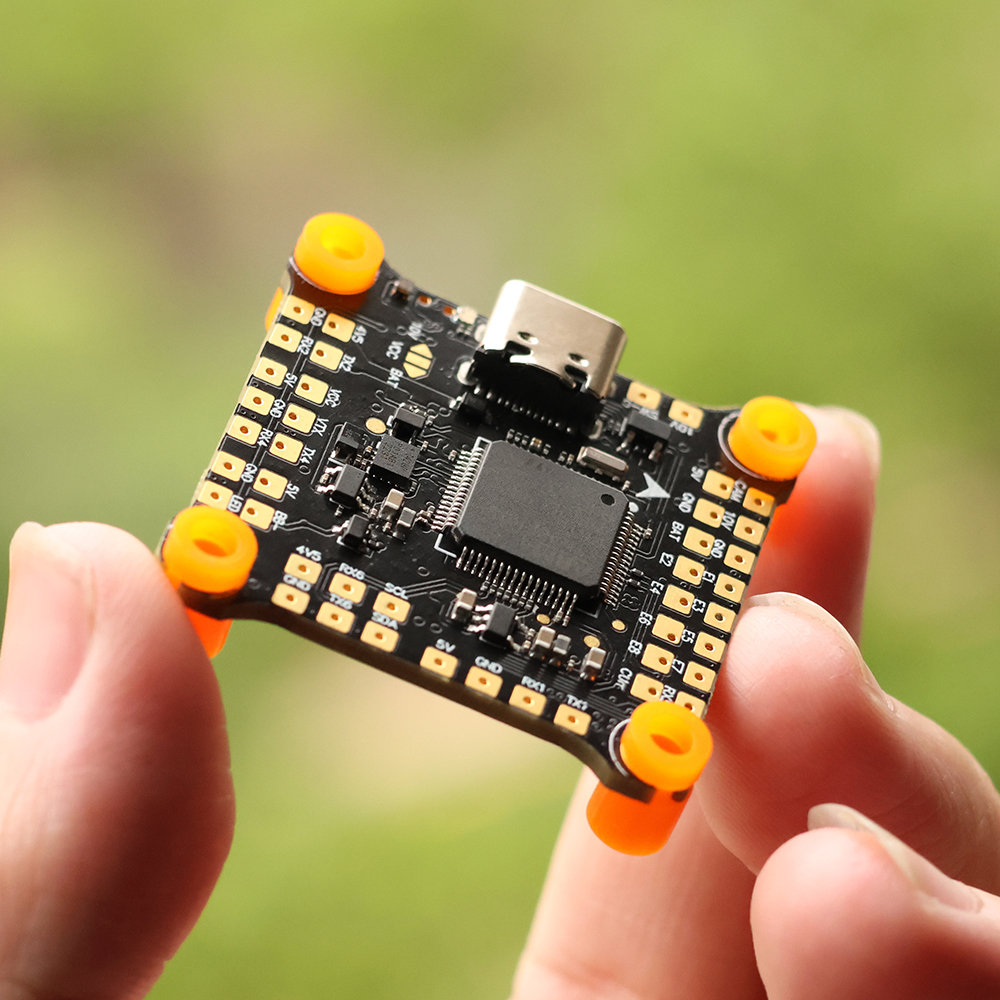

Flight Controller Specifications

• Dimensions: 36×36mm

• Net Weight: 8.5g

• Mounting Hole Spacing: 30.5×30.5mm, φ4mm

• Processor: STM32F405RET6

• Gyroscope: ICM42688

• BEC Output: 5V/3A; 10V/2.5A

• Blackbox Storage: 16MB

• Input Voltage: 2-8S LiPo

• Firmware: HAKRCF405V2

• UART Ports: 5

• Features:

  • Supports external programmable LED

  • Built-in 6-pin FPV system connector

  • RX2 for SBUS connection

ESC Parameters

• Dimensions: 40×43×6.5mm

• Net Weight: 12.5g

• Mounting Hole Spacing: 30.5×30.5mm, Φ4mm

• Current Ratings:

  • Continuous: 65A

  • Peak: 75A (10 seconds)

• Input Voltage: 2-8S LiPo

• Current Scaling Factor: 160

• Features: Supports ESC telemetry data return

• Configuration Software: BLHeliSuite32Activator_32.9.0.3

• Supported Protocols:

  • PWM, Oneshot125, Oneshot42

  • Multishot, Dshot150, Dshot300, Dshot600

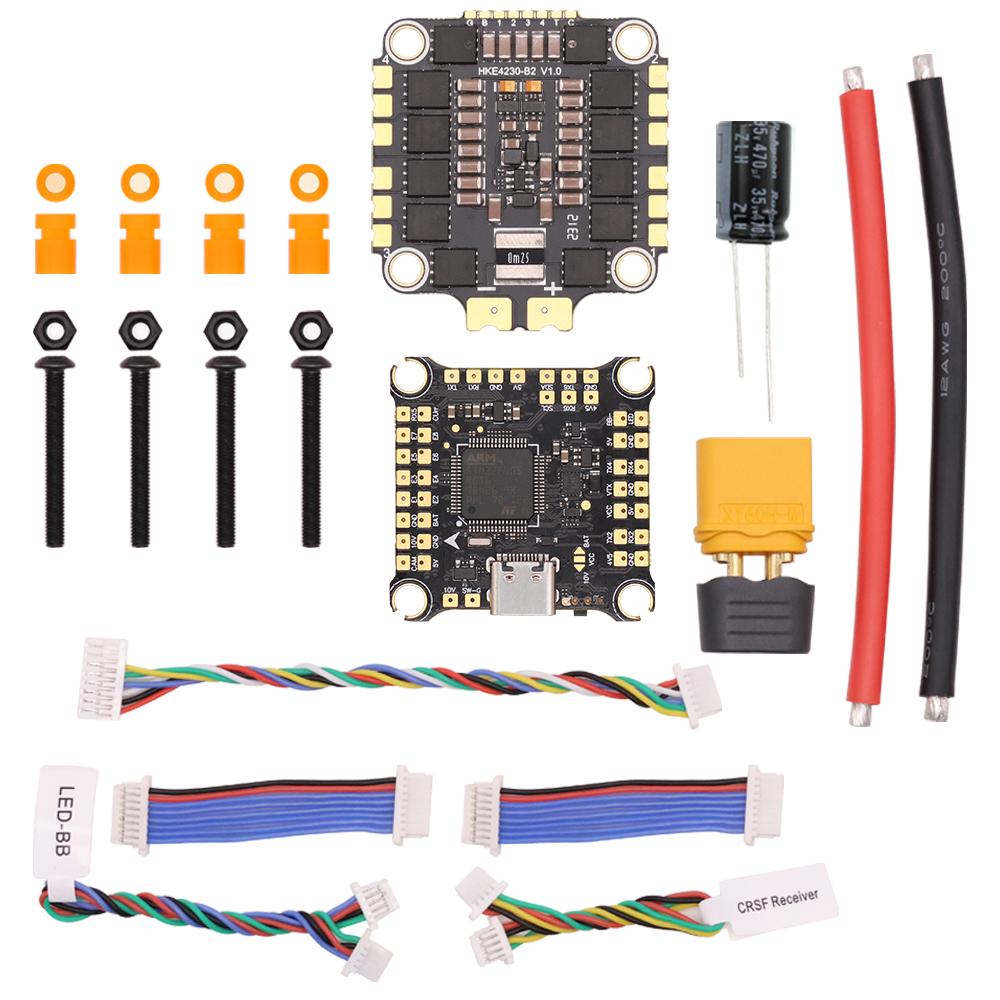

Accessories List

• M3 orange vibration damping balls ×8

• 8-pin cables ×2

• 4-pin LED cable ×1

• DJI 6-pin FPV cable ×1

• Capacitor: 35V 470μF ×1

• XT60 power connector ×1

• Red/black power wires ×1

• M3×25mm screws ×4

• Black nuts ×4
