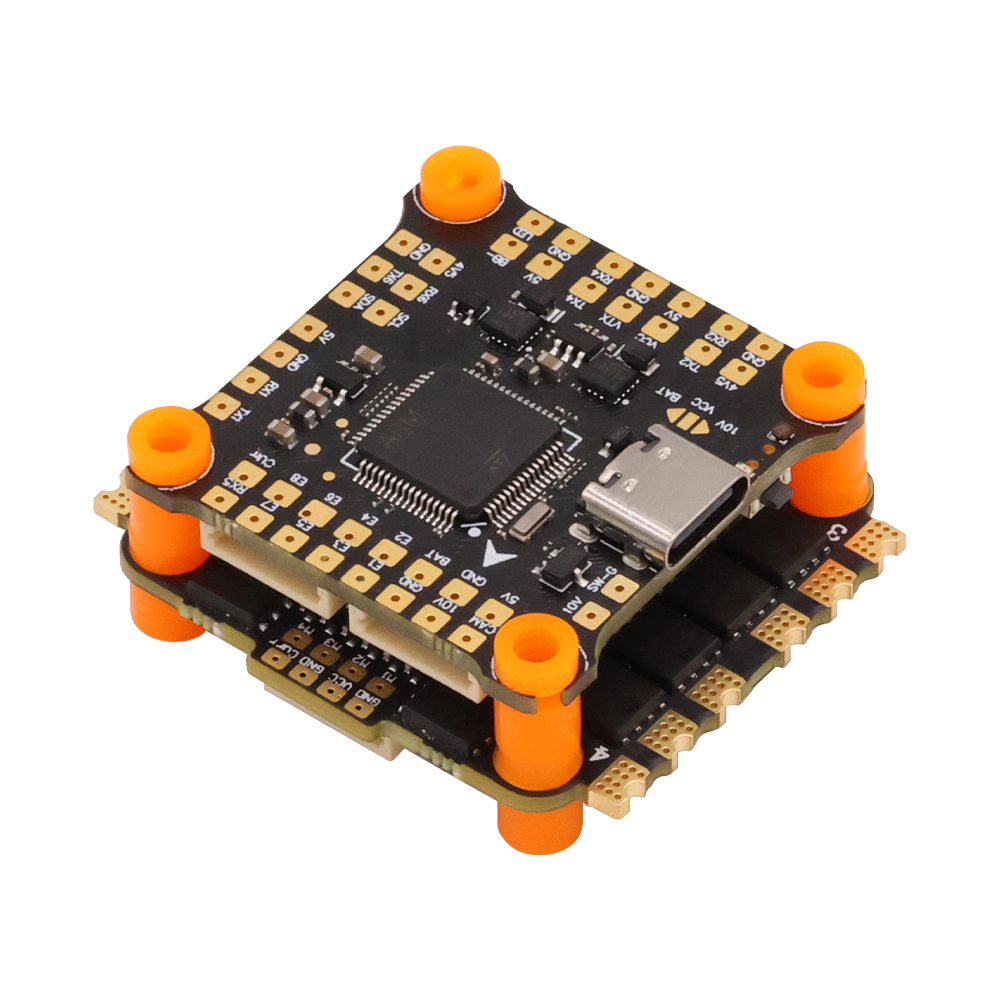

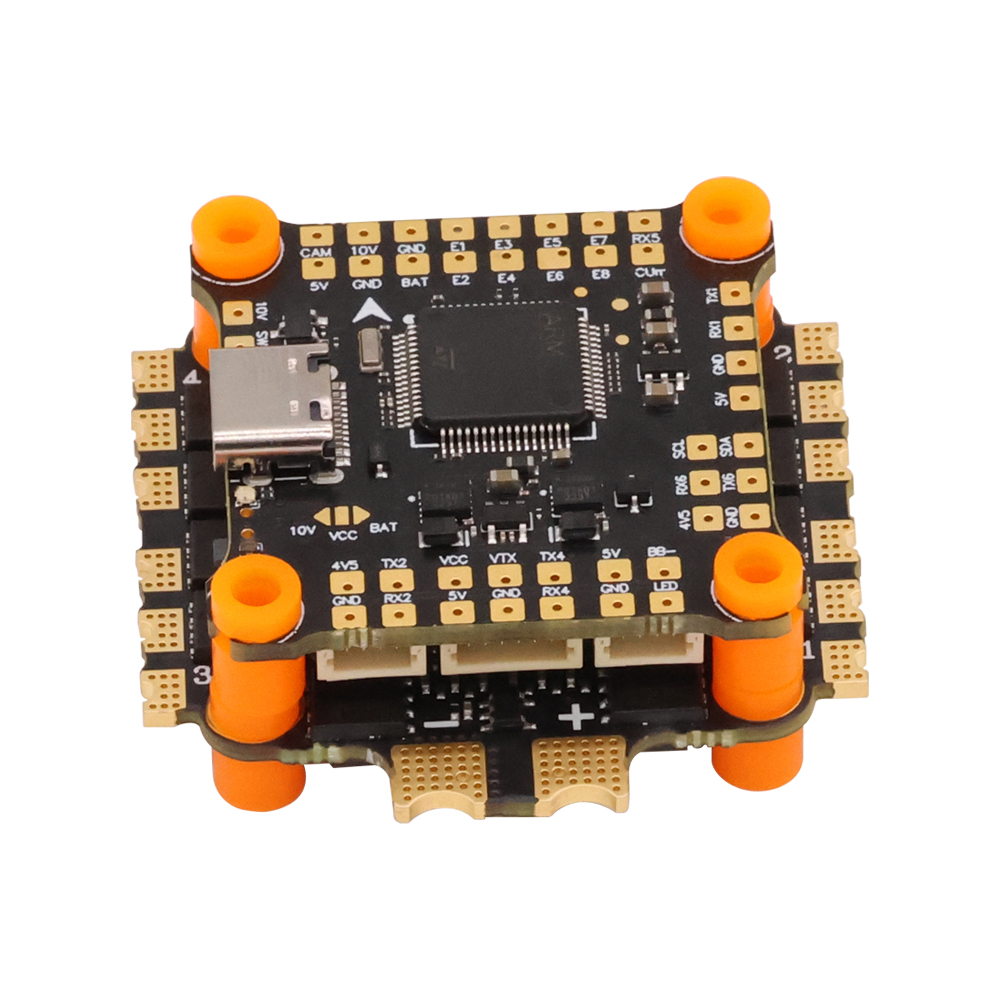

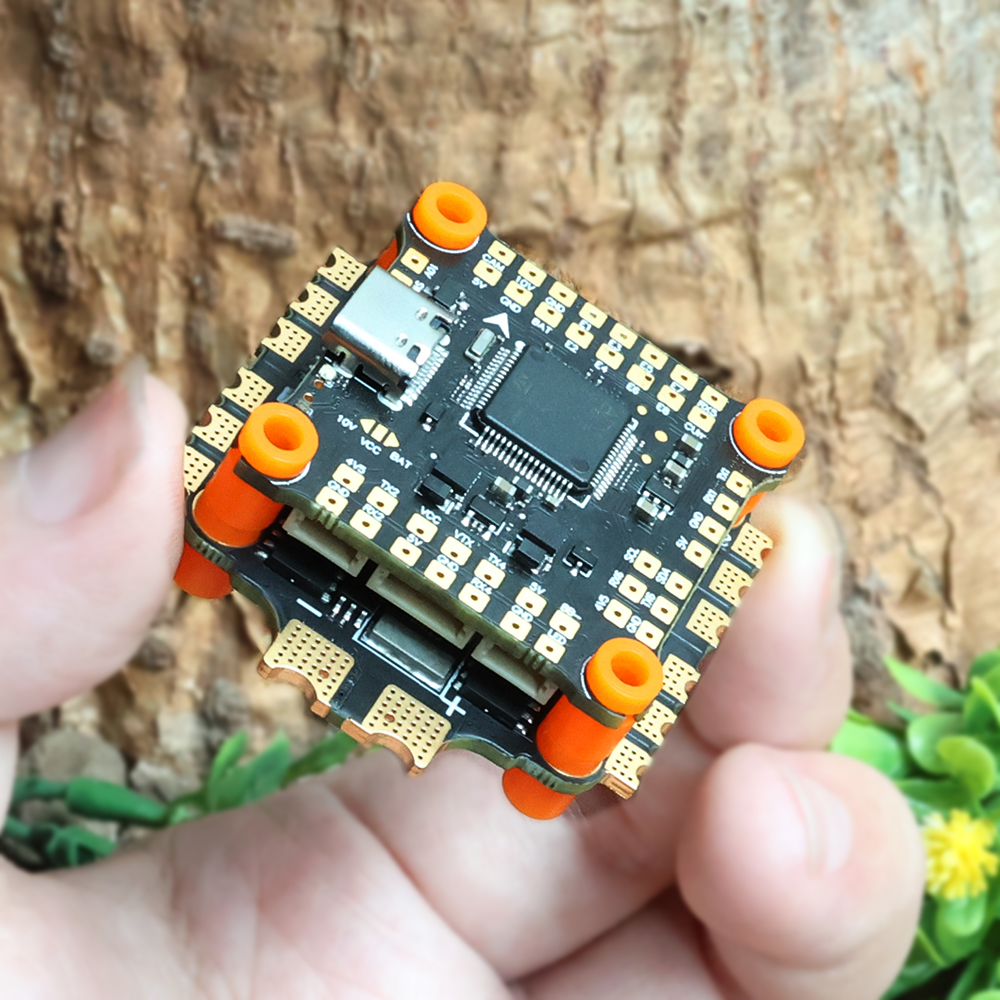

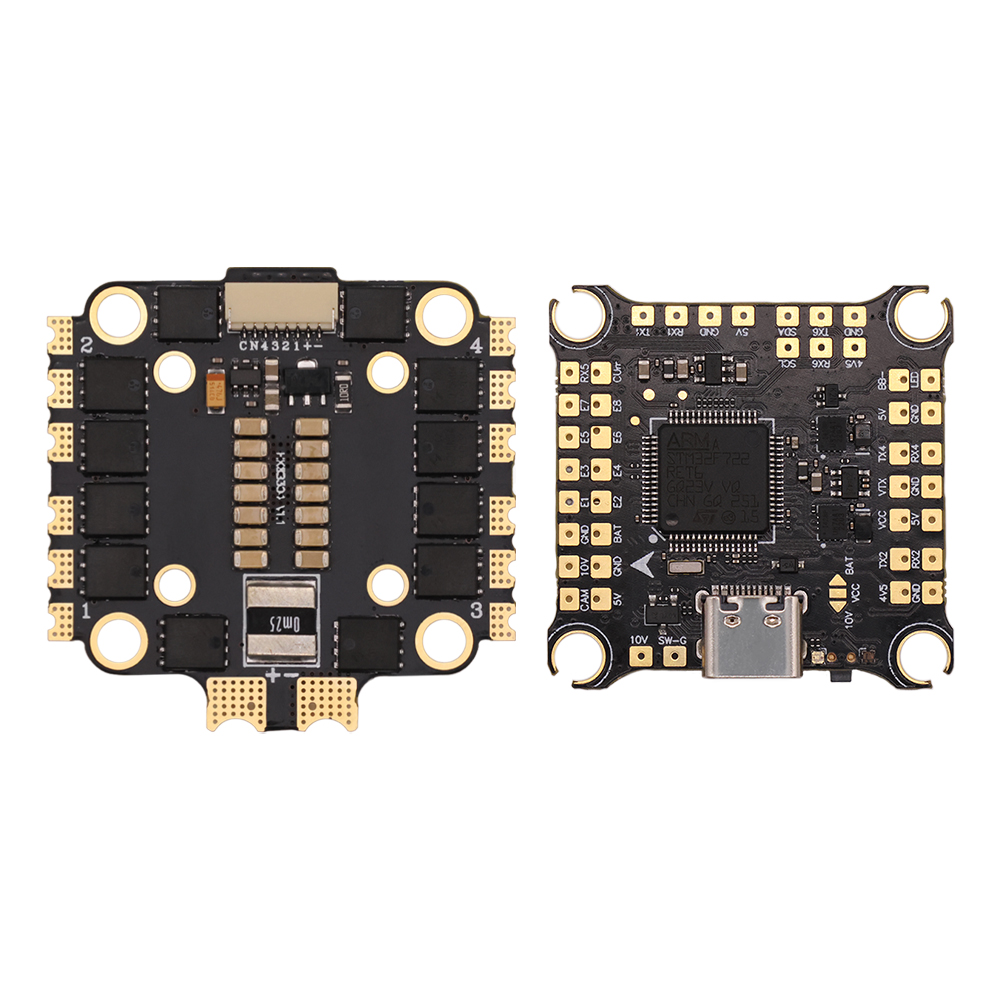

HAKRC 45A F7 V2 STACK

Flight Stack Net Weight: 23g
Package Weight: 71.5g
Package Dimensions: Φ64×64×35mm

Flight Controller Specifications

• Dimensions: 36×36mm

• Net Weight: 8.5g

• Mounting Hole Spacing: 30.5×30.5mm, φ4mm

• Processor: STM32F722RET6

• Gyroscope: ICM42688 Dual Gyro System

• BEC Output: 5V/3A; 10V/2.5A

• Blackbox Storage: 16MB

• Input Voltage: 2-6S LiPo

• Firmware: HAKRCF722V2

• UART Ports: 6

• Built-in Features:

  • 4x Programmable RGB LEDs

  • 6-pin FPV System Connector

ESC Parameters

• Dimensions: 44×44mm

• Net Weight: 13.5g

• Mounting Hole Spacing: 20/30.5×20/30.5mm, Φ4mm

• Current Ratings:

  • Continuous: 45A

  • Peak: 50A (10-second duration)

• Input Voltage: 2-6S LiPo

• Current Scaling Factor: 160

• Configuration Software: BLHeliSuite16.7.14.9.0.3

• Supported Protocols:

  • PWM, Oneshot125, Oneshot42

  • Multishot, Dshot150, Dshot300, Dshot600

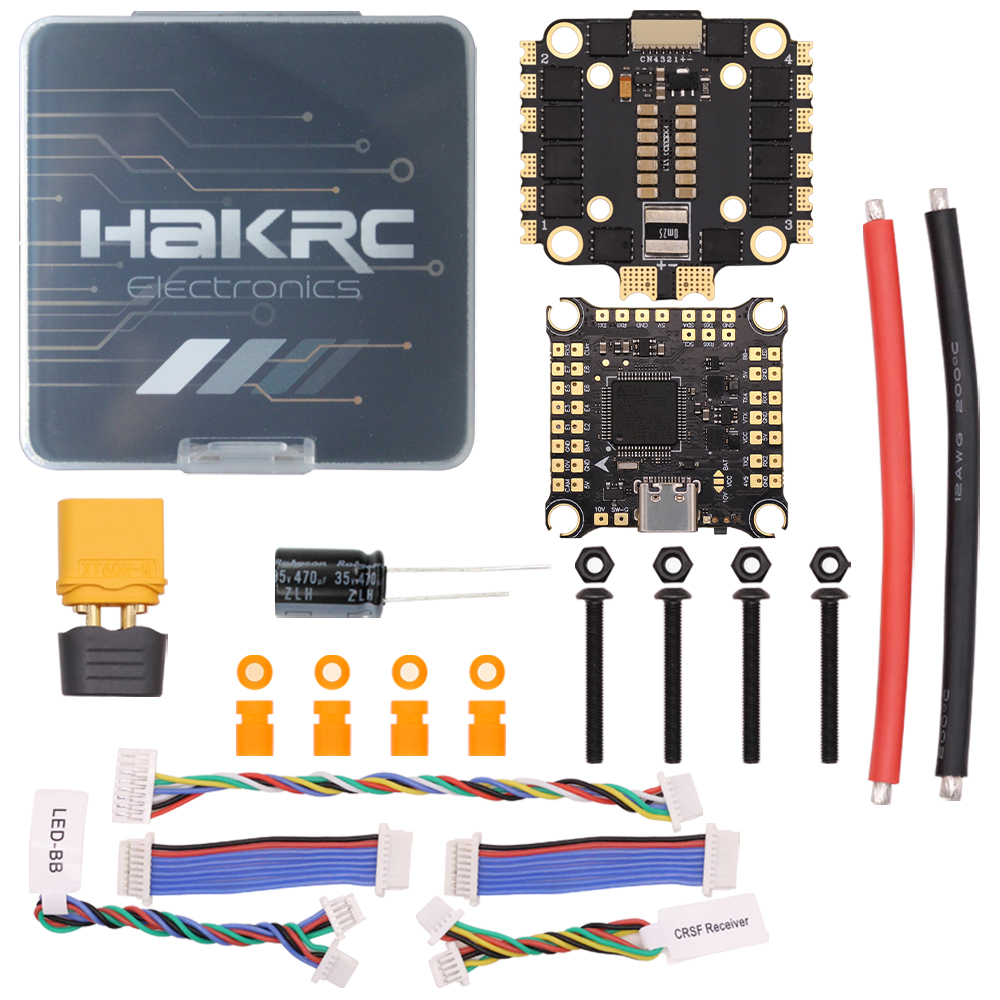

Accessories Package

• M3 Orange Vibration Damping Balls (8x)

• 8-pin Cables (2x)

• 4-pin LED Cable (1x)

• CRSF Receiver 8-pin Cable (1x)

• DJI 6-pin FPV Cable (1x)

• Capacitor: 35V 470μF (1x)

• XT60 Power Connector (1x)

• Red/Black Power Wires (1 set)

• M3×25mm Screws (4x)

• Black Nuts (4x)
