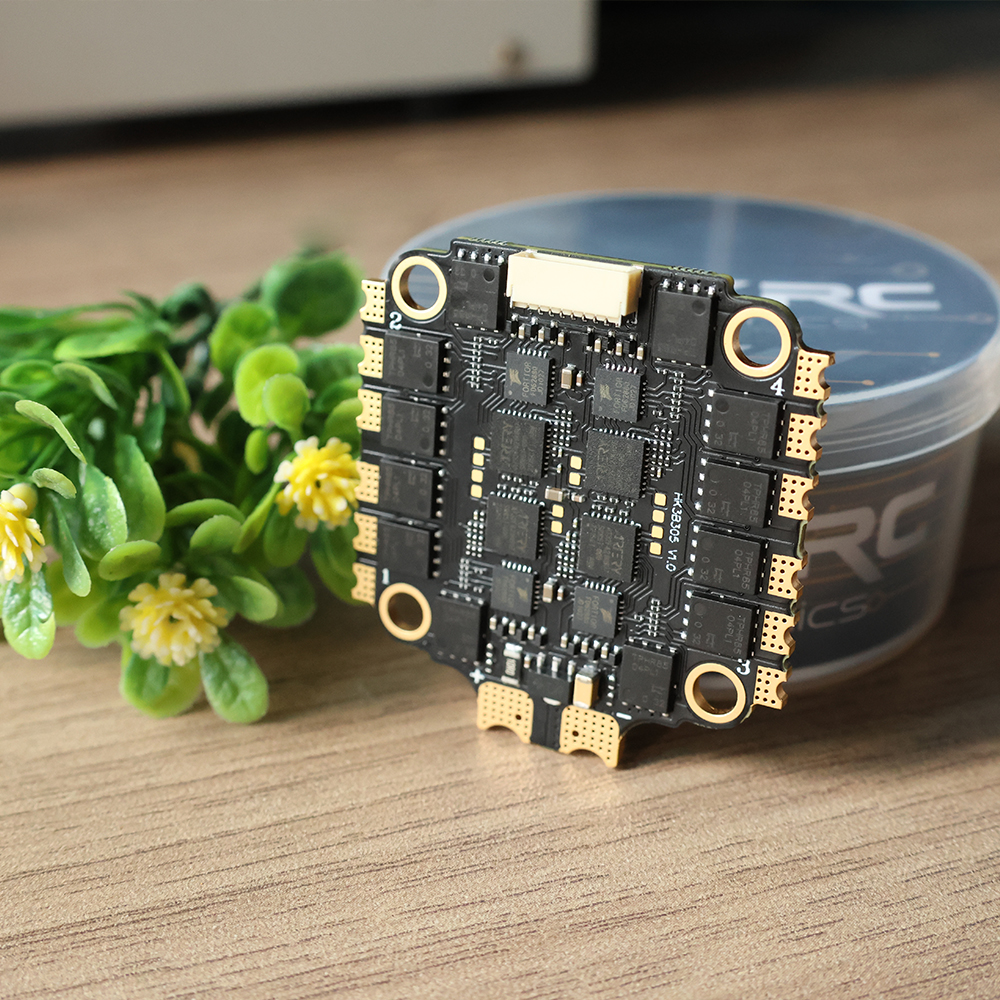

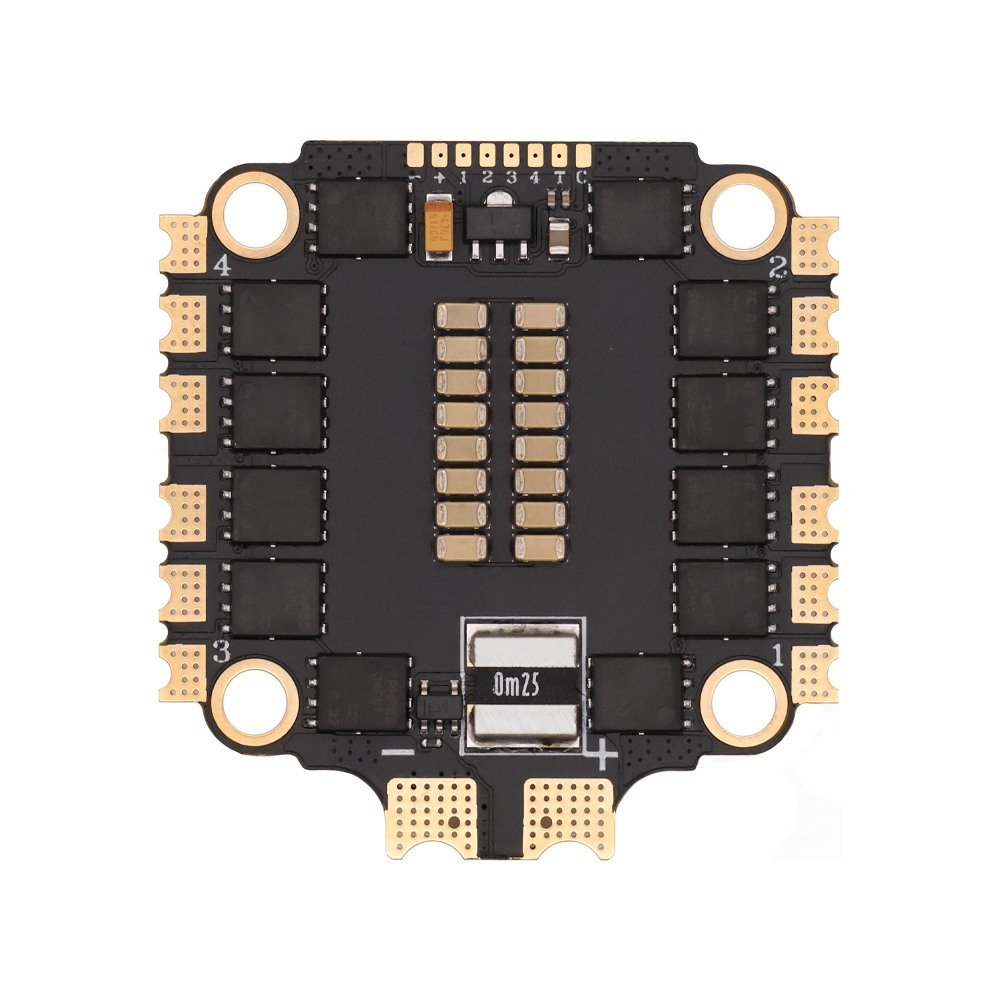

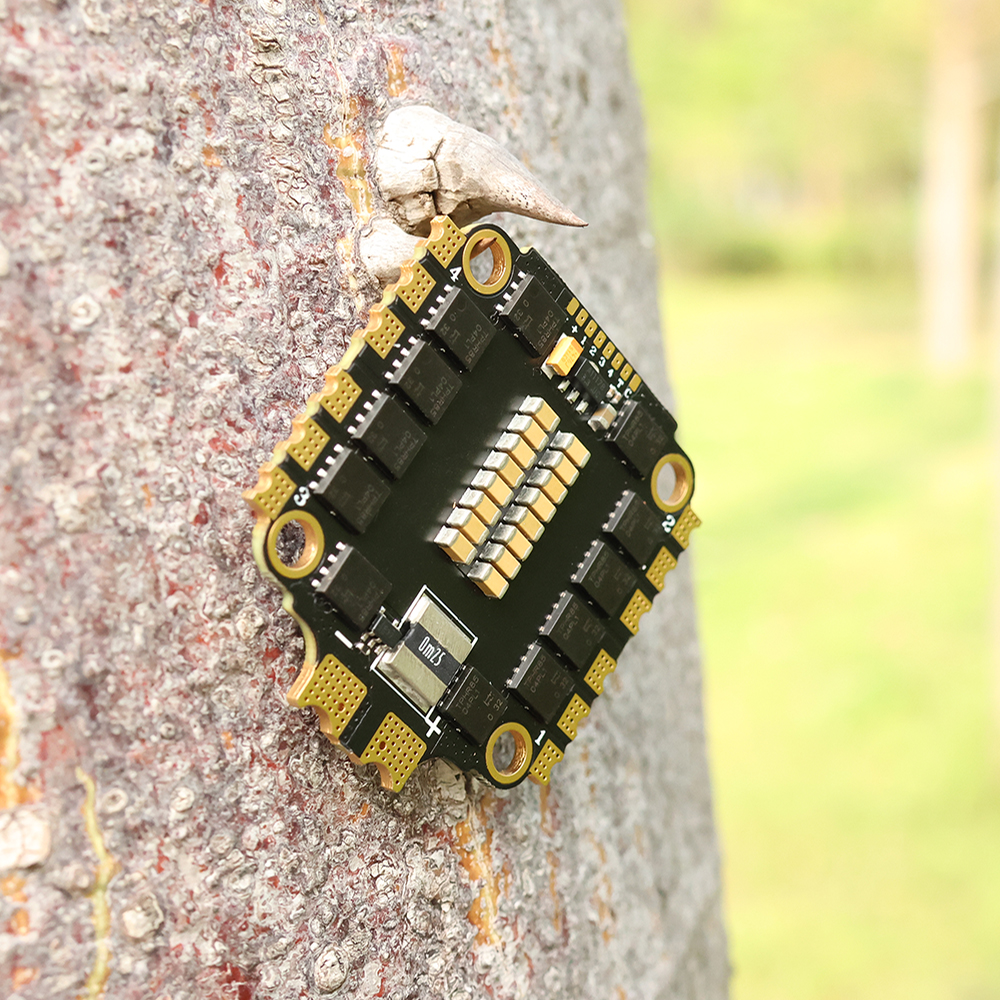

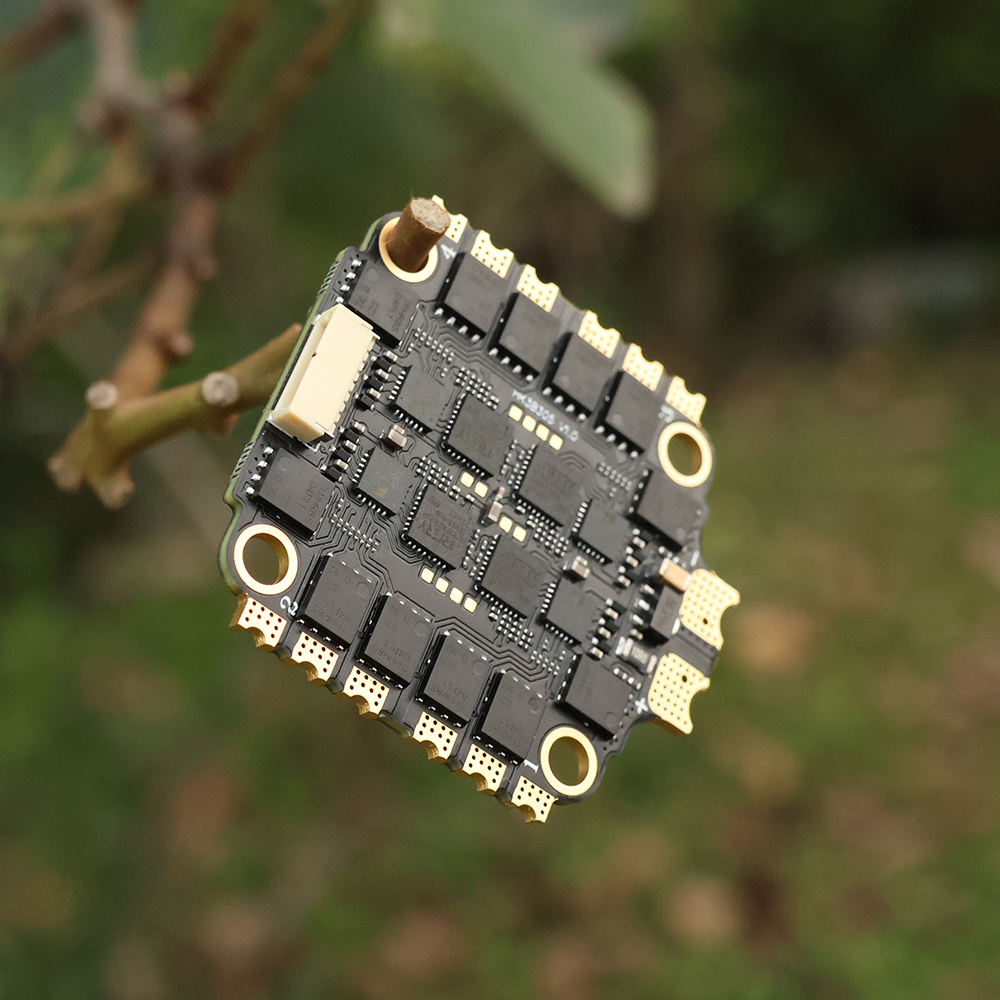

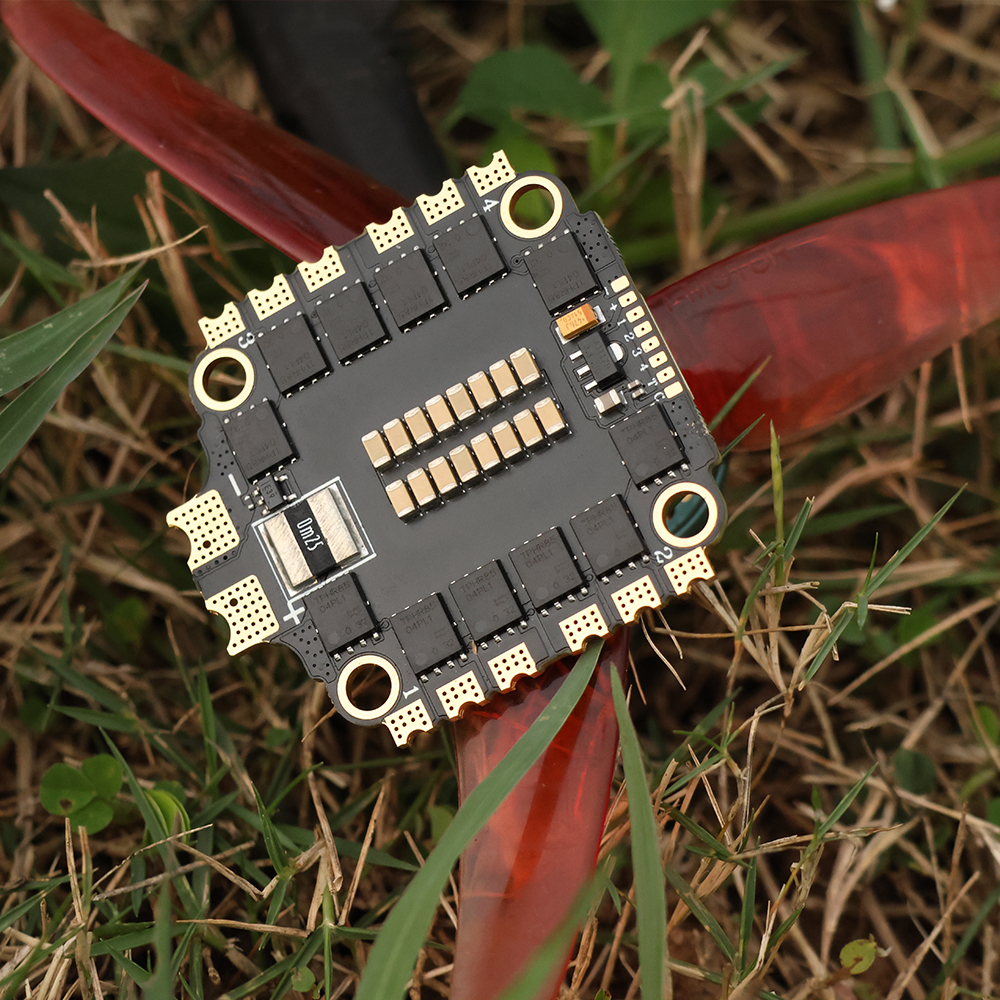

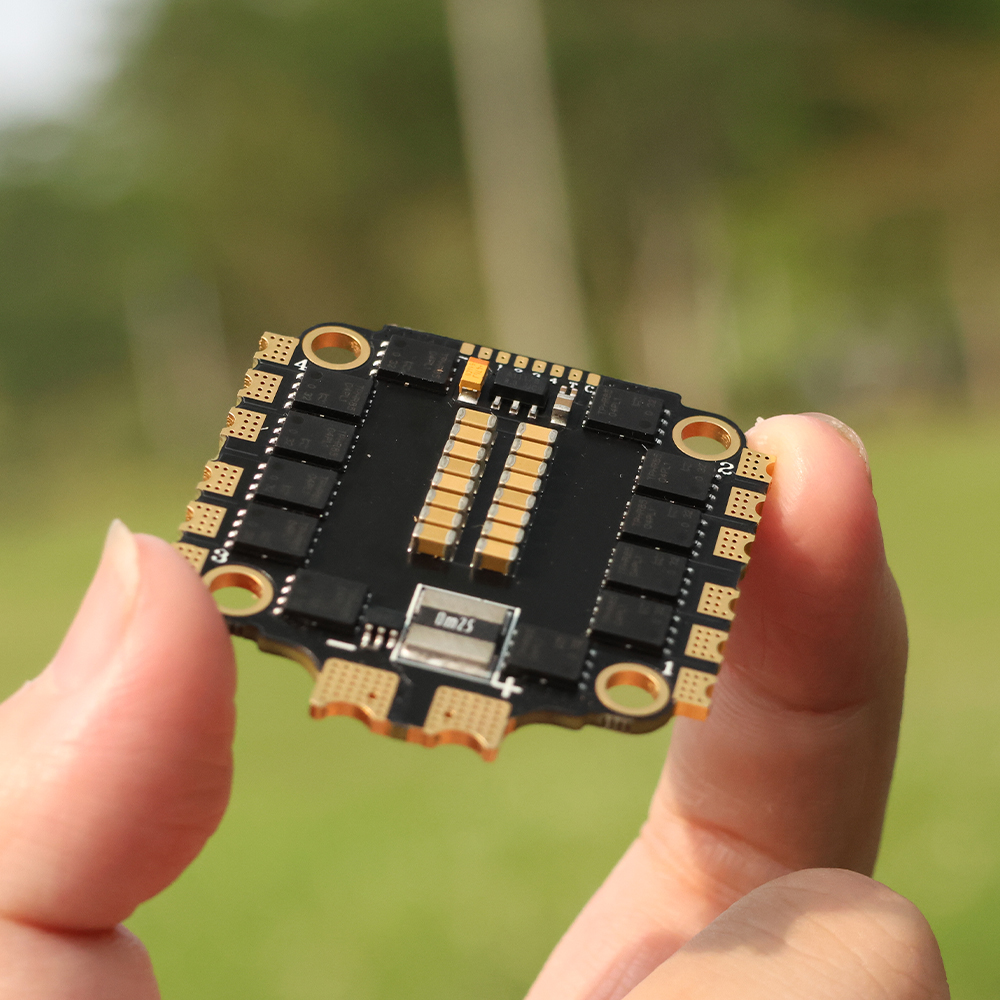

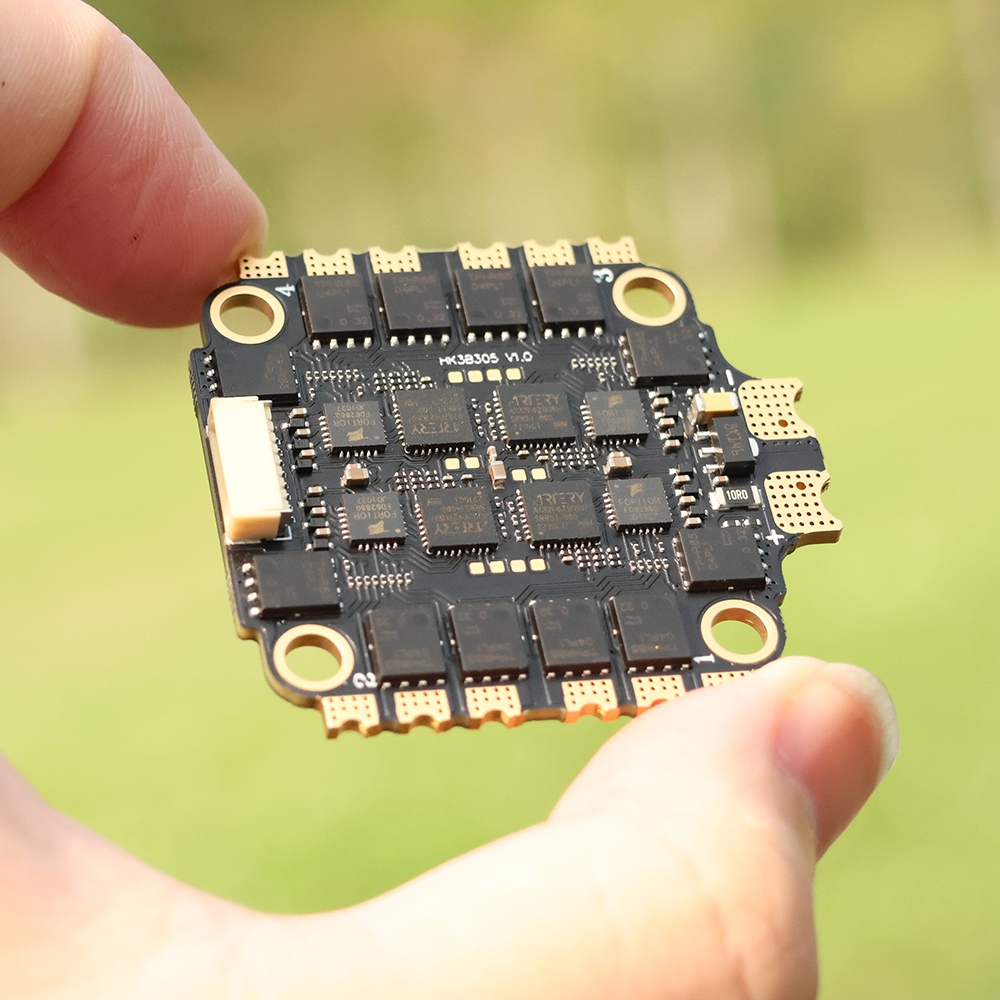

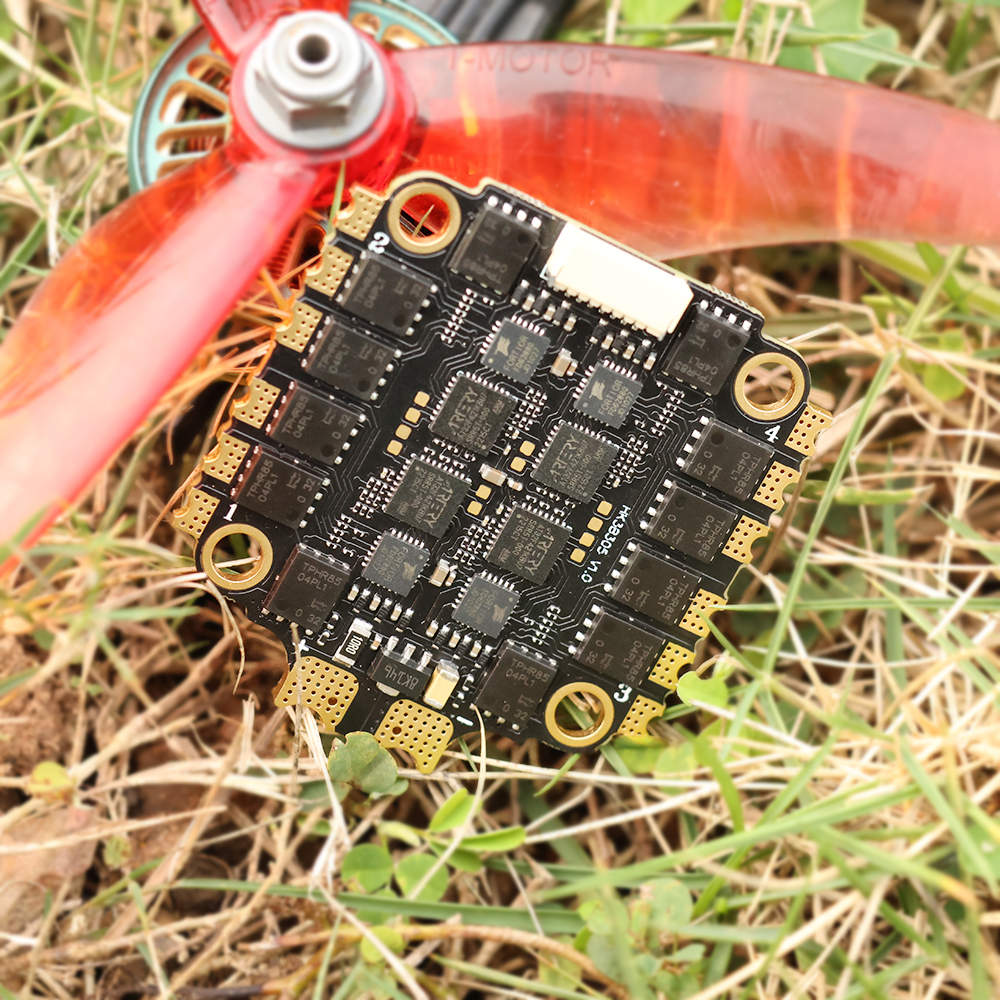

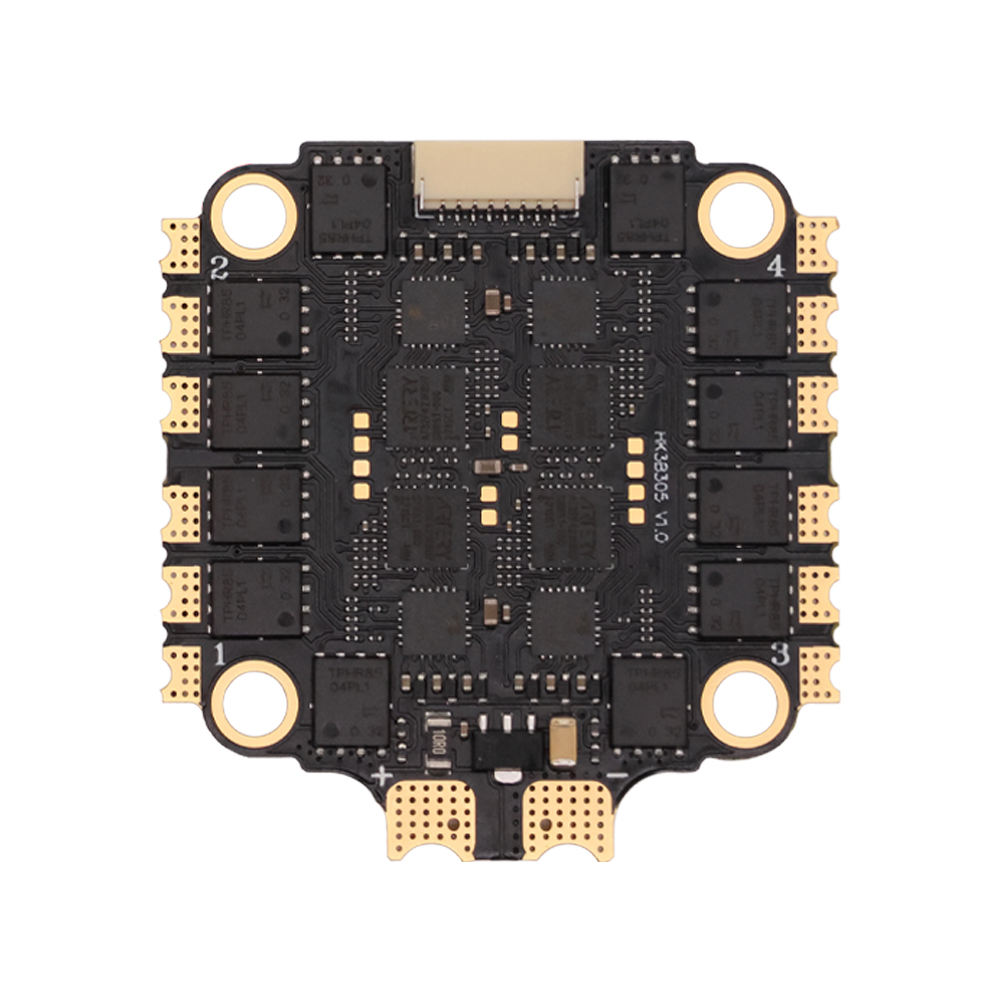

HAKRC 3B60A 4-in-1 ESC

Product Features:

1. The PCB adopts a high-end 6-layer 2oz heavy copper design, utilizing an advanced resin-filled via PCB production process with dual-pad design, providing stronger current-carrying capacity and improved heat dissipation.

2. The MOSFET uses imported 40V high-current MOSFETs, offering a long lifespan and strong load-bearing capability.

3. Industrial-grade LDOs are employed for high-temperature resistance.

4. High-quality Japanese Murata capacitors are used for superior filtering performance.

5. Dimensions: 44*44mm (30.5mm-30.5mm mounting holes)
6. Package Dimensions: ø64*64*35mm
7. Net Weight: 15g
8. Package Weight: 54g

ESC Parameters:

• ESC Firmware: HAKRC-60-K42_Multi_32_8.Hex

• Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

• Input Voltage: 2S-6S LiPo

• Current Meter Scale: 160

• Continuous Current: 60A

• Peak Current: 70A
