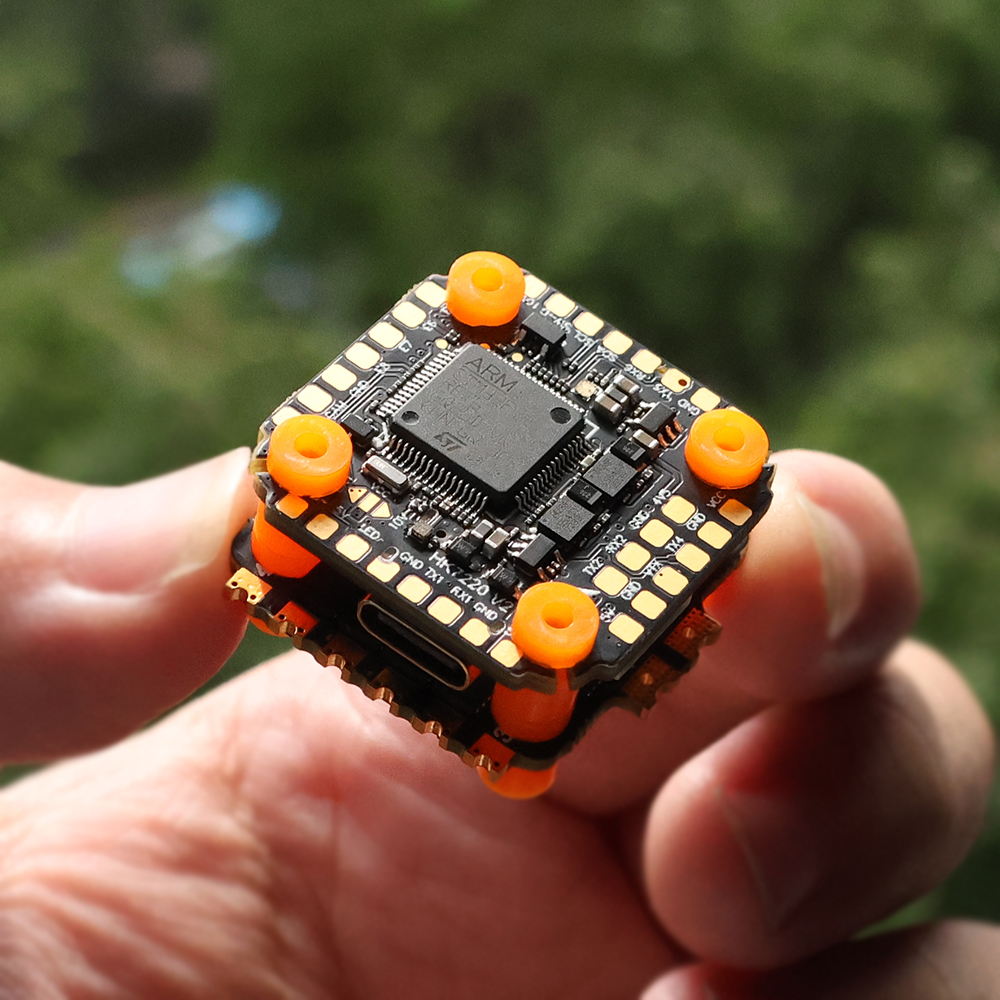

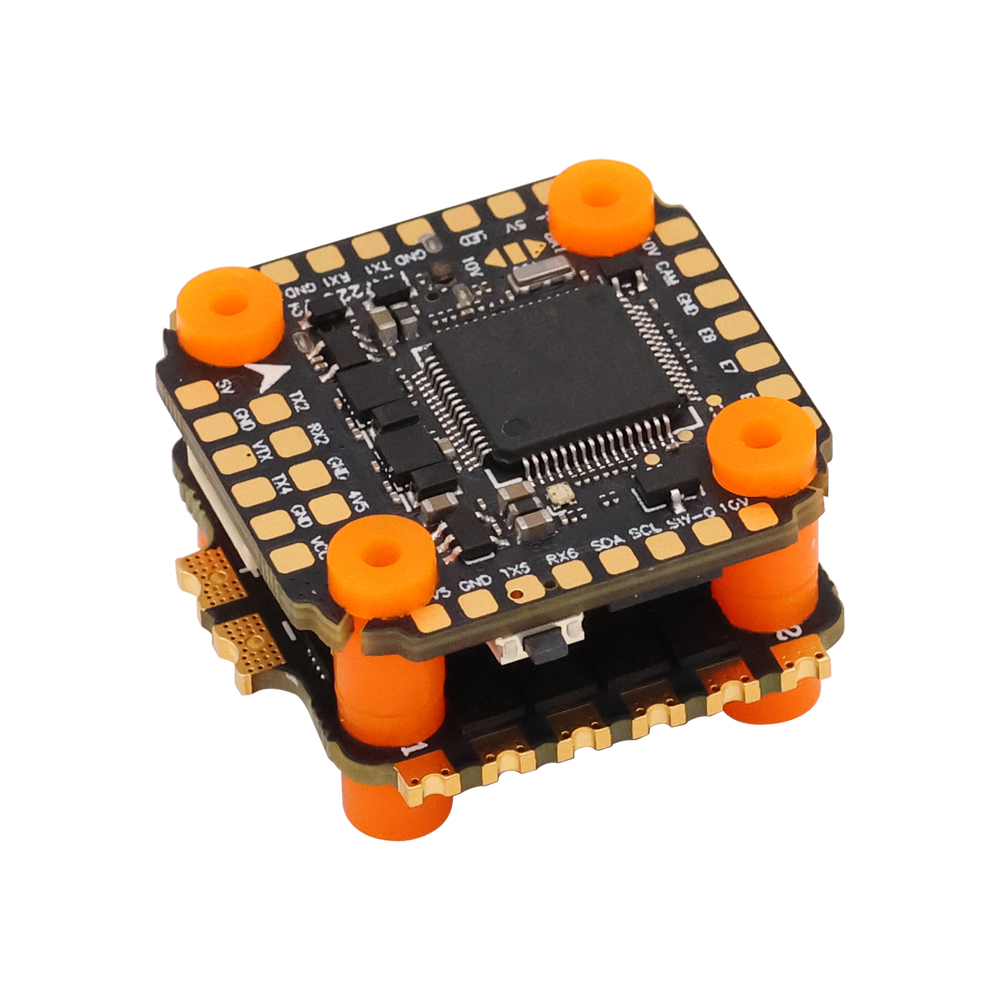

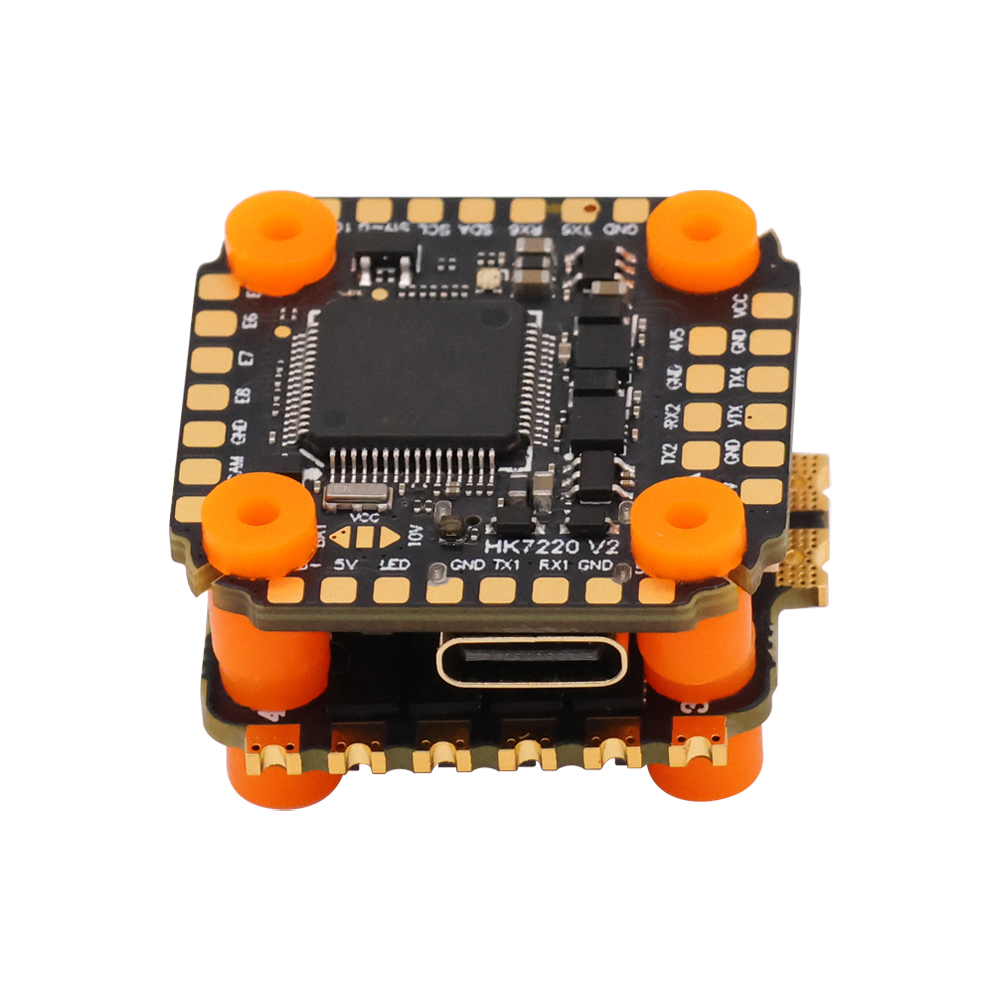

HAKEC 40AminiF7 V2 STACK

Flight Stack Net Weight: 13.5g
Package Weight: 56g
Package Dimensions: Φ64×64×35mm

Flight Controller Specifications

• FC Dimensions: 29×29mm

• FC Net Weight: 6g

• Mounting Hole Spacing: 20×20mm, φ4mm

• Processor: STM32F722RET6

• Gyro: ICM42688 Dual Gyroscope

• BEC: 5V/2.5A; 10V/2A

• Storage: 16MB

• Input Voltage: 2–6S

• Firmware: HAKRCF7220V2

• UART Ports: 6

• Supports external programmable LED

• Built-in 6-pin Air Unit Connector

ESC Parameters

• ESC Dimensions: 31×29.5mm

• ESC Net Weight: 6g

• Mounting Hole Spacing: 20×20mm, Φ4mm

• Continuous Current: 40A

• Peak Current: 45A (sustainable for 10 seconds)

• Input Voltage: 2-6S

• Current Scale: 300

• Supports ESC telemetry data return

• Configuration Software: BLHeliSuite32Activator_32.9.0.3

• Supported Drive Signals: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Accessories List

• M2/M3 Orange Vibration Damping Balls ×4

• 8-pin Cable ×1

• DJI Air Unit 6-pin Cable ×1

• Capacitor ×1 (35V 270μF)

• XT60 Power Connector ×1

• Red/Blue Power Wires ×1

• M2×25mm Screws ×4

• Black Nuts ×4
