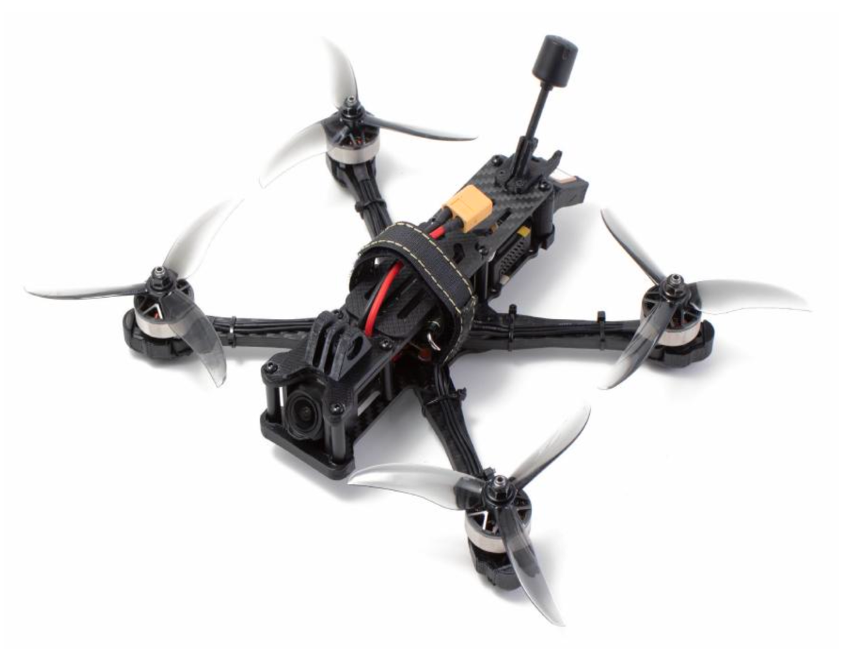

UAVs FreeTC5 Freestyle FPV Drone

Specifications

1. Frame:Wheelbase 230mm
2. Motor:6S 2207-1960Kv
3. Flight Controller:F405 (3-6S Input)
4. ESC:50A Bluejay Firmware
5. Propeller:5*3 (3-Blade)
6. Camera:1500TVL, 2.1mm Lens
7. VTX Antenna:8GHz SMA Connector
8. Video Transmitter (VTX):8G, Switchable 200mW/800mW/1000mW
9. Radio Receiver:RP2 2.4GHz ELRS Nano
10. GPS Module:ULBOX, 115200 Baud Rate, 10Hz Update Frequency

Features

The FreeTC5 is engineered specifically for 5-inch Freestyle and Cinematic applications. Its H-frame structure features shortened arms that reduce weight while enhancing arm strength. Additionally, the propellers remain entirely outside the FPV camera’s field of view, making it ideally suited for high-agility freeflight maneuvers.

The flight system incorporates a cutting-edge F405 3-6S flight controller, paired with 50A Bluejay ESCs, RP2 2.4G ELRS Nano receiver, and 2207 1960KV motors, delivering exceptional performance with up to 8 minutes of flight time.

The frame supports both 25.5×25.5mm and 30.5×30.5mm mounting patterns for flight stack and video transmitter installation, ensuring compatibility with all market-available flight controllers and VTX systems. This includes full support for both analog and digital video transmission systems such as DJI O3 Air Unit and Caddx Walksnail.

Designed to accommodate 19-20mm wide FPV cameras, the frame features 3D-printed upper and lower camera mounts that provide effective camera protection and eliminate lens movement, ensuring secure fixation without any wobble.
